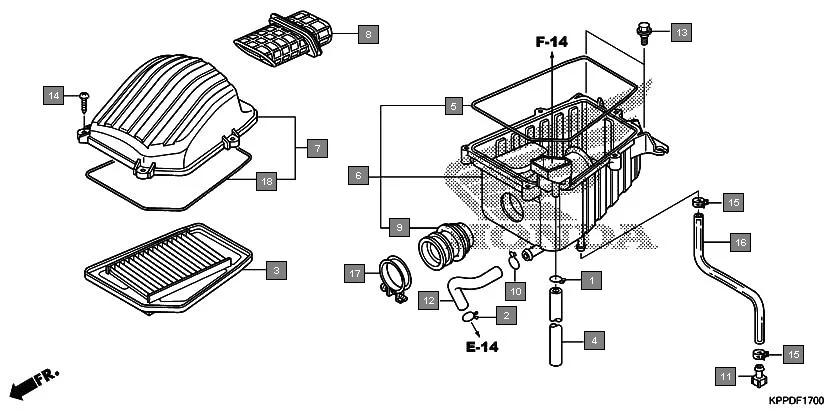

F-17 - AIR CLEANER
HONDA CBR150R CBR150RG · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15772-292-010 | CLIP, BREATHER TUBE | 1 | |
| 2 | 15772-551-000 | CLIP, BREATHER TUBE | 1 | |
| 3 | 17210-KPP-N00 | ELEMENT COMP., AIR CLEANER | 1 | |
| 4 | 17211-KPP-T00 | TUBE, DRAIN | 1 | |
| 5 | 17213-KPP-900 | SEAL, AIR CLEANER | 1 | |
| 6 | 17225-KPP-N00 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 7 | 17235-KPP-N00 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 8 | 17240-KPP-T00 | DUCT, INLET | 1 | |
| 9 | 17253-KPP-N00 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 10 | 17316-611-000 | CLIP, BREATHER TUBE | 1 | |
| 11 | 17370-419-700 | PLUG, BREATHER TUBE | 1 | |
| 12 | 17370-KTY-D30 | TUBE, BREATHER | 1 | |
| 13 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 14 | 93903-25510 | SCREW, TAPPING, 5X25 | 5 | |
| 15 | 95002-41050-08 | CLAMP, TUBE(D10.5) | 2 | |
| 16 | 95003-23038-31 | TUBE, VINYL, 8X12X380 (95003-23001-60M) | 1 | |
| 17 | 95018-50250 | BAND 50 AIR/C CONN.TUBE | 1 | |
