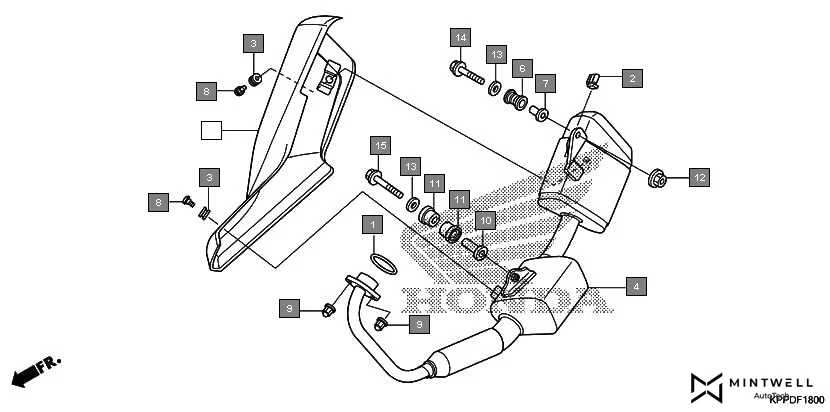

F-18 - EXHAUST MUFFLER
HONDA CBR150R CBR150RG · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-MN5-650 | GASKET, EX. PIPE | 1 | |
| 2 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 3 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 4 | 18350-KPP-N00 | MUFFLER COMP., EX. | 1 | |
| 5 | 18355-KPP-N00 | COVER, MUFFLER | 1 | |
| 6 | 18421-KPP-930 | RUBBER, MUFFLER MOUNTING | 1 | |
| 7 | 18422-KGC-900 | COLLAR, MUFFLER MOUNTING | 1 | |
| 8 | 90113-KTA-920 | SCREW, PAN, 6X12 | 2 | |
| 9 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 10 | 90321-KW6-840 | COLLAR, MUFFLER SETTING | 1 | |
| 11 | 90802-KY4-680 | RUBBER, MUFFLER SETTING | 2 | |
| 12 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 13 | 94103-08000 | WASHER, PLAIN, 8MM | 2 | |
| 14 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 14 | 95702-08035-00 | BOLT, FLANGE, 8X35 | 1 | |
| 15 | 95701-08050-00 | BOLT, FLANGE, 8 X 50 | 1 | |
| 15 | 95702-08050-00 | BOLT, FLANGE, 8X50 | 1 | |
