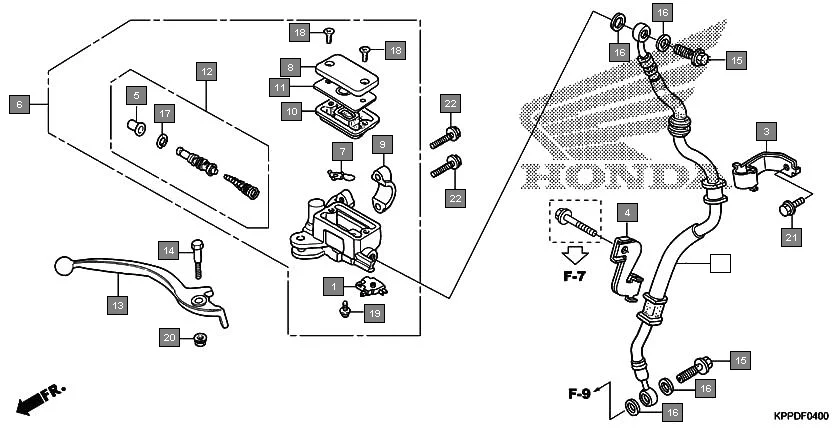

F-4 - FRONT BRAKE MASTER CYLINDER
HONDA CBR150R CBR150RG · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-KSP-B51 | SWITCH ASSY., FR. STOP | 1 | |
| 2 | 45126-KPP-T01 | HOSE COMP., FR. BRAKE | 1 | |
| 3 | 45155-KPP-N00 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 4 | 45156-KPP-N00 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 5 | 45504-410-003 | BOOT COMP. | 1 | |
| 6 | 45510-KPP-N01 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 | |
| 7 | 45512-MA6-006 | PROTECTOR | 1 | |
| 8 | 45513-HA2-006 | CAP, MASTER CYLINDER | 1 | |
| 9 | 45517-166-006 | HOLDER, MASTER CYLINDER | 1 | |
| 10 | 45520-MG7-006 | DIAPHRAGM | 1 | |
| 11 | 45521-HA2-006 | PLATE, DIAPHRAGM | 1 | |
| 12 | 45530-471-831 | CYLINDER SET, MASTER | 1 | |
| 13 | 53175-KPP-T01 | LEVER, R. STEERING HANDLE | 1 | |
| 14 | 90114-166-006 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 15 | 90145-GAZ-981 | BOLT, OIL, 10X22 | 2 | |
| 16 | 90545-300-000 | WASHER ,OIL BOLT | 4 | |
| 17 | 90651-MA5-671 | CIRCLIP | 1 | |
| 18 | 93600-04012-1G | SCREW, FLAT, 4X12 | 2 | |
| 19 | 93893-04012-17 | SCREW-WASHER, 4X12 | 1 | |
| 20 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 21 | 95801-06010-08 | BOLT, FLANGE, 6X10 | 1 | |
| 21 | 95802-06010-08 | BOLT, FLANGE, 6X10 | 1 | |
| 22 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
