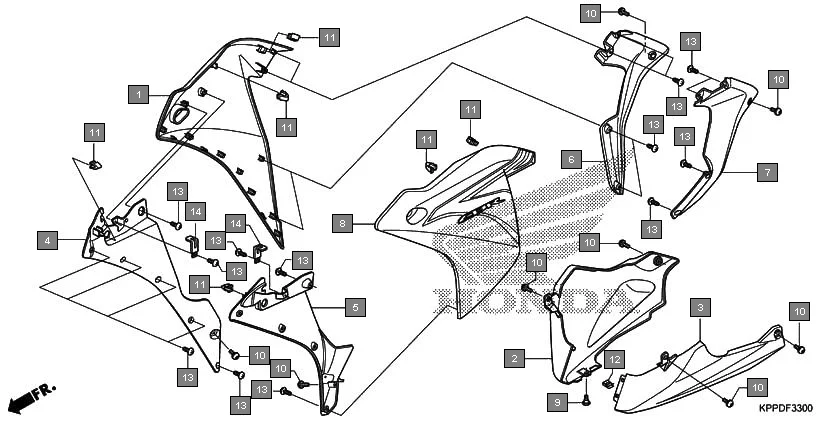

F-33 - UNDER COWL
HONDA CBR150R CBR150RG · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64300-KPP-N10ZB | COWL SET, R. MIDDLE(WL) *TYPE1* | 1 | |
| 1 | 64300-KPP-N10ZC | COWL SET, R. MIDDLE(WL) *TYPE2* | 1 | |
| 1 | 64300-KPP-N00ZA | COWL SET, R. MIDDLE(WL) *TYPE2* | 1 | |
| 1 | 64300-KPP-N00ZB | COWL SET, R. MIDDLE(WL) *TYPE1* | 1 | |
| 2 | 64310-KPP-T00 | COWL, R. UNDER | 1 | |
| 3 | 64320-KPP-T00 | COWL, L. UNDER | 1 | |
| 4 | 64350-KPP-T00 | COWL, R. INNER MIDDLE | 1 | |
| 5 | 64360-KPP-T00 | COWL, L. INNER MIDDLE | 1 | |
| 6 | 64370-KPP-T00 | PANEL, R. MIDDLE | 1 | |
| 7 | 64380-KPP-T00 | PANEL, L. MIDDLE | 1 | |
| 8 | 64400-KPP-N10ZB | COWL SET, L. MIDDLE(WL) *TYPE1* | 1 | |
| 8 | 64400-KPP-N10ZC | COWL SET, L. MIDDLE(WL) *TYPE2* | 1 | |
| 8 | 64400-KPP-N00ZA | COWL SET, L. MIDDLE(WL) *TYPE2* | 1 | |
| 8 | 64400-KPP-N00ZB | COWL SET, L. MIDDLE(WL) *TYPE1* | 1 | |
| 9 | 90115-KPP-860 | SCREW, VISOR SPECIAL SETTING | 1 | |
| 10 | 90132-KPP-T00 | SCREW, PAN, 6X10 | 8 | |
| 11 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 6 | |
| 12 | 90677-KAN-T00 | NUT, CLIP, 5MM | 1 | |
| 13 | 93903-24380 | SCREW TAPPING, 4 X 12 | 22 | |
| 14 | 94591-45000 | CLIP 4 X 50 | 2 | |
