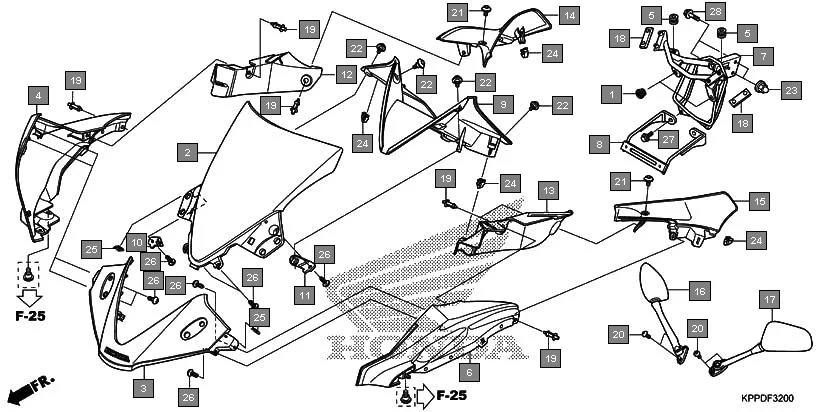

F-32 - UPPER COWL
HONDA CBR150R CBR150RG · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 2 | 64110-KPP-T00 | SCREEN, WIND | 1 | |
| 3 | 64200-KPP-N00ZA | COWL SET, FR. UPPER(WL) *TYPE4* | 1 | |
| 3 | 64200-KPP-N00ZB | COWL SET, FR. UPPER(WL) *TYPE3* | 1 | |
| 3 | 64200-KPP-N00ZC | COWL SET, FR. UPPER(WL) *TYPE2* | 1 | |
| 3 | 64200-KPP-N00ZD | COWL SET, FR. UPPER(WL) *TYPE1* | 1 | |
| 4 | 64210-KPP-T00ZB | COWL, R. FR. SIDE *NH1* BLACK | 1 | |
| 5 | 64216-GJ2-730 | RUBBER, SCREEN SETTING | 2 | |
| 6 | 64220-KPP-T00ZB | COWL, L. FR. SIDE *NH1* BLACK | 1 | |
| 7 | 64221-KPP-N00 | STAY COMP., FR. COWL UPPER | 1 | |
| 8 | 64225-KPP-N00 | BRAKET COMP., FR. NUMBER PLATE | 1 | |
| 9 | 64260-KPP-T00 | COWL, FR. INNER | 1 | |
| 10 | 64261-KPP-T00 | STAY, R. FR. INNER COWL | 1 | |
| 11 | 64262-KPP-T00 | STAY, L. FR. INNER COWL | 1 | |
| 12 | 64270-KPP-T00 | COWL, R. SIDE INNER | 1 | |
| 13 | 64280-KPP-T00 | COWL, L. SIDE INNER | 1 | |
| 14 | 64460-KPP-T00 | LID, R. TANK | 1 | |
| 15 | 64470-KPP-T00 | LID, L. TANK | 1 | |
| 16 | 88110-KYJ-H00 | MIRROR ASSY., R. BACK | 1 | |
| 17 | 88120-KYJ-H00 | MIRROR ASSY., L. BACK | 1 | |
| 18 | 88201-KPP-T00 | RUBBER, BACK MIRROR | 2 | |
| 19 | 90116-KWT-900 | RIVET, PUSH, 7MM | 6 | |
| 20 | 90130-KPP-T00 | BOLT, SOCKET, 6X13 | 4 | |
| 21 | 90132-KPP-T00 | SCREW, PAN, 6X10 | 2 | |
| 22 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 4 | |
| 23 | 90307-KYJ-710 | NUT, CAP, 8MM | 2 | |
| 24 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 4 | |
| 25 | 90677-KAN-T00 | NUT, CLIP, 5MM | 2 | |
| 26 | 93903-24380 | SCREW TAPPING, 4 X 12 | 8 | |
| 27 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
| 27 | 95702-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
| 28 | 95801-08032-00 | BOLT, FLANGE, 8X32 | 2 | |
| 28 | 95802-08032-00 | BOLT, FLANGE, 8X32 | 2 | |
