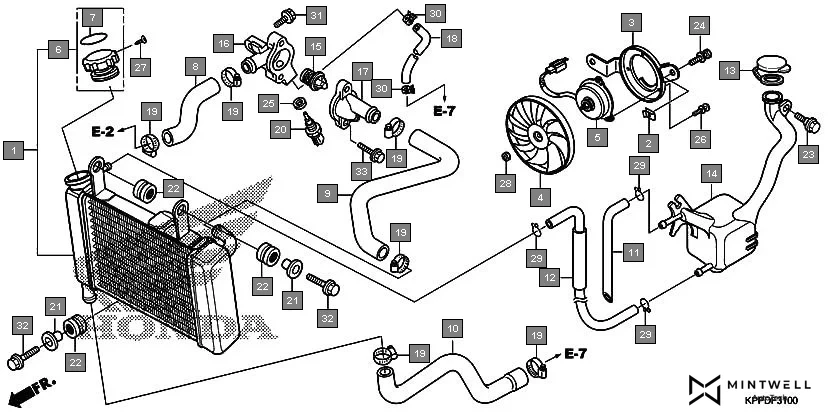

F-31 - RADIATOR
HONDA CBR150R CBR150RG · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19010-KPP-T01 | RADIATOR COMP. | 1 | |
| 2 | 19014-KEA-003 | NUT, SETTING(6MM) | 1 | |
| 3 | 19015-KPP-T01 | SHROUD COMP. | 1 | |
| 4 | 19020-KPP-T01 | FAN COMP., COOLING | 1 | |
| 5 | 19030-KPP-T01 | MOTOR COMP., FAN | 1 | |
| 6 | 19045-KPP-T01 | CAP COMP., RADIATOR(T.RAD) | 1 | |
| 7 | 19055-KPP-T01 | SEAL, RADIATOR CAP | 1 | |
| 8 | 19061-KPP-T00 | HOSE, THERMOSTAT | 1 | |
| 9 | 19062-KPP-T00 | HOSE, RADIATOR UPPER | 1 | |
| 10 | 19063-KTY-D30 | HOSE, RADIATOR LOWER | 1 | |
| 11 | 19104-KPP-930 | TUBE, RESERVE TANK BREATHER | 1 | |
| 12 | 19105-KTY-H50 | TUBE, RADIATOR BREATHER | 1 | |
| 13 | 19109-KPC-640 | CAP, RESERVE TANK | 1 | |
| 14 | 19110-KPP-930 | TANK, RADIATOR RESERVE | 1 | |
| 15 | 19300-GEE-003 | THERMOSTAT | 1 | |
| 16 | 19311-KTY-D30 | CASE COMP., THERMOSTAT | 1 | |
| 17 | 19315-KGH-900 | COVER, THERMOSTAT | 1 | |
| 18 | 19320-KPP-T00 | TUBE A, THERMOSTAT CASE | 1 | |
| 19 | 19506-KGH-900 | CLAMP, WATER HOSE | 6 | |
| 20 | 37870-KRJ-901 | SENSOR ASSY., WATER TEMP | 1 | |
| 21 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 | |
| 22 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 | |
| 23 | 90111-162-000 | BOLT, FLANGE, 6MM | 1 | |
| 24 | 90120-GHB-601 | BOLT-WASHER, 6X12 | 2 | |
| 25 | 90454-MC7-000 | WASHER, SPECIAL, 12MM | 1 | |
| 26 | 93891-04006-07 | SCREW-WASHER, 4X6 | 3 | |
| 27 | 93901-22020 | SCREW, TAPPING, 3X6 | 1 | |
| 28 | 90315-MFL-003 | NUT, FLANGE, 3MM | 1 | |
| 29 | 95002-02100 | CLIP, B-10 TUBE | 3 | |
| 30 | 95002-41050-08 | CLAMP, TUBE(D10.5) | 2 | |
| 31 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 31 | 95702-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 32 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 32 | 95702-06022-00 | BOLT, FLANGE, 6X22 | 2 | |
| 33 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
