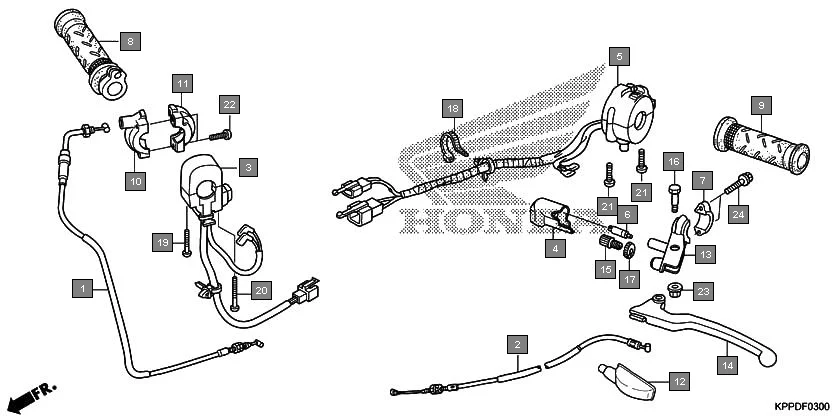

F-3 - HANDLE LEVER/SWITCH/CABLE
HONDA CBR150R CBR150RG · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-KPP-T01 | CABLE COMP., THROTTLE | 1 | |
| 2 | 22870-KPP-T00 | CABLE COMP., CLUTCH | 1 | |
| 3 | 35150-KPP-N01 | SWITCH ASSY., STARTER | 1 | |
| 4 | 35152-KPP-T00 | COVER, CLUTCH SWITCH | 1 | |
| 5 | 35200-KPP-N01 | SWITCH ASSY., WINKER | 1 | |
| 6 | 35330-KWS-901 | SWITCH ASSY., CLUTCH | 1 | |
| 8 | 53140-KPH-970 | GRIP COMP., THROTTLE | 1 | |
| 9 | 53166-KFL-D20 | GRIP, L. HANDLE | 1 | |
| 10 | 53167-KWF-900 | HOUSING UP THROT | 1 | |
| 11 | 53168-KTE-910 | HOUSING UND.THROTTLE | 1 | |
| 12 | 53172-402-700 | COVER, L. HANDLE LEVER | 1 | |
| 13 | 53172-KPP-N00 | BRACKET, L. HANDLE LEVER | 1 | |
| 14 | 53178-KPP-N00 | LEVER, L. STEERING HANDLE | 1 | |
| 15 | 53192-268-000 | BOLT, WIRE ADJUSTING | 1 | |
| 16 | 90114-KGH-900 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 17 | 90321-315-670 | NUT, FIXING | 1 | |
| 18 | 90652-KT1-771 | BAND, WIRE | 1 | |
| 19 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 20 | 93500-04045-0G | SCREW PAN 4X45 | 1 | |
| 21 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
