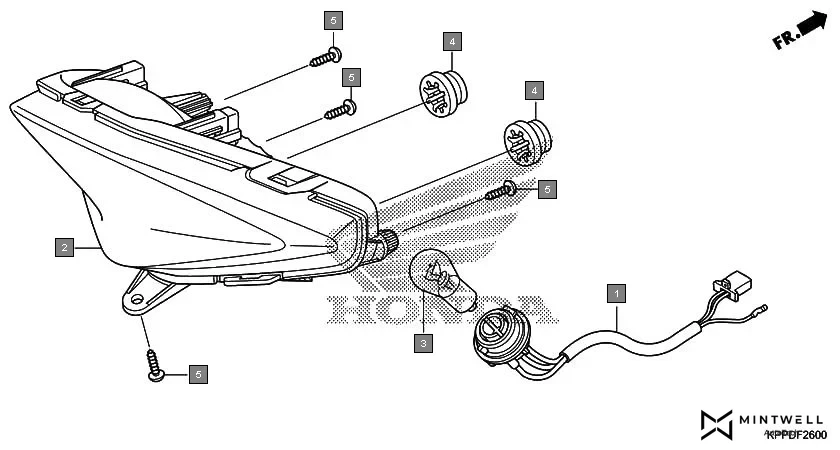

F-26 - TAILLIGHT
HONDA CBR150R CBR150RG · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33703-KPP-T02 | SOCKET COMP., TAILLIGHT | 1 | |
| 2 | 33710-KPP-T01 | TAILLIGHT UNIT | 1 | |
| 3 | 34906-447-711 | BULB, TAIL & STOP LIGHT (12V 21/5W)(STANLEY) | 1 | |
| 3 | 34907-KPP-T01 | BULB, TAIL & STOP LIGHT (12V 21/5W) | 1 | |
| 4 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 5 | 93903-25280 | SCREW, TAPPING 5X12 | 4 | |
