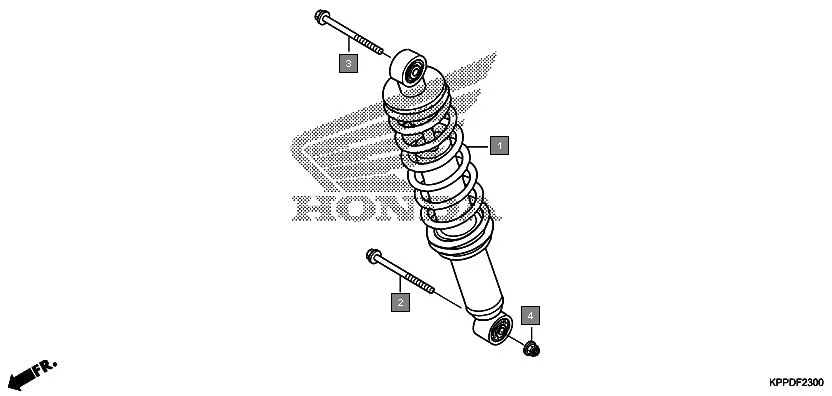

F-23 - REAR CUSHION
HONDA CBR150R CBR150RG · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KPP-N01 | CUSHION ASSY., RR.(SHOWA) | 1 | |
| 2 | 90103-KPP-T00 | BOLT, FLANGE, 10X46 | 1 | |
| 3 | 90126-KT2-000 | BOLT, FLANGE, 10X42 | 1 | |
| 4 | 90304-GE8-003 | NUT, U, 10MM(FUSE RASHI) | 1 | |
| 4 | 90304-KST-942 | NUT FLG.PT 10MM | 1 | |
| 4 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
