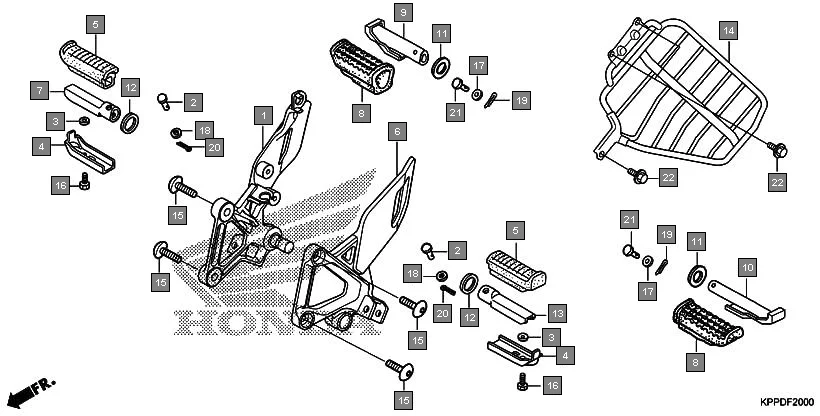

F-20 - STEP
HONDA CBR150R CBR150RG · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50600-KPP-N00 | HOLDER, R. STEP | 1 | |
| 2 | 50603-KSP-900 | PIN, STEP BAR JOINT | 2 | |
| 3 | 50618-KE8-000 | COLLAR, 6.5 X 11 X 3 | 2 | |
| 4 | 50619-KSP-900 | PLATE, STEP LOWER | 2 | |
| 5 | 50661-KFN-850 | RUBBER , MAIN STEP | 2 | |
| 6 | 50700-KPP-N00 | HOLDER, L. STEP | 1 | |
| 7 | 50701-KSP-900 | BAR,R M STEP | 1 | |
| 8 | 50710-KET-600 | RUBBER, PILLION STEP | 2 | |
| 9 | 50711-KET-600 | BAR, R. PILLION STEP | 1 | |
| 10 | 50712-KET-600 | BAR, L. PILLION STEP | 1 | |
| 11 | 50715-KE8-000 | PLATE, P. STEP SIDE | 2 | |
| 12 | 50715-KSP-910 | PLATE,P STEP SIDE | 2 | |
| 13 | 50801-KSP-900 | BAR,L M STEP | 1 | |
| 14 | 51103-KPP-N00 | GUARD, SARI | 1 | |
| 15 | 90128-KET-900 | BOLT, SOCKET, 8X22 | 4 | |
| 16 | 92101-06012-0G | BOLT, HEX 6 X 12 | 2 | |
| 17 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 18 | 94102-08000 | WASHER, PLAIN, 8MM | 2 | |
| 19 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 20 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 21 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 22 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 3 | |
| 22 | 95702-08014-07 | BOLT, FLANGE, 8X14 | 3 | |
