F-2 - METER

HONDA CBR150R CBR150RG · 11 parts

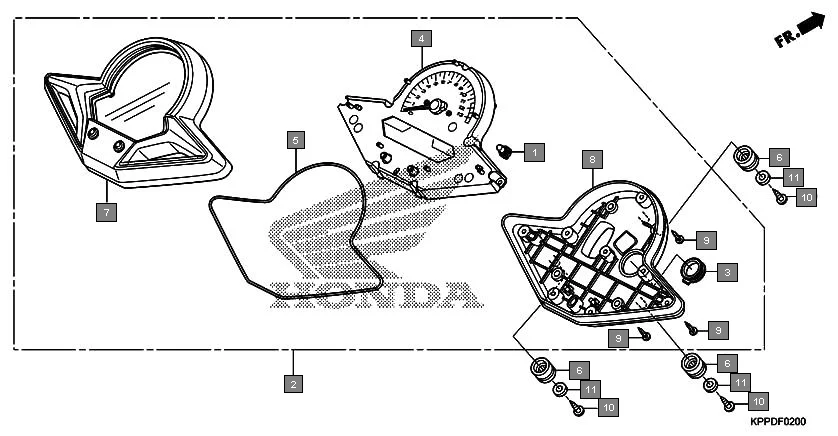

F-2 METER assembly diagram for HONDA CBR150R CBR150RG

Parts in This Assembly (11)

Ref # Part Number Description Qty
1 35505-KPP-T01 BULB & SOCKET ASSY.(12V 1.7W) 1
2 37100-KPP-N02 METER ASSY., COMBINATION(KPH 1
3 37105-KPP-T01 CAP 1
4 37110-KPP-N02 METER ASSY., SPEED & TACHO & FUEL 1
5 37180-KPP-T01 GASKET 1
6 37244-KVK-900 RUBBER, METER MOUNTING 3
7 37610-KPP-T01 CASE ASSY., UPPER 1
8 37620-KPP-T01 CASE ASSY., UNDER 1
9 93903-22480 SCREW TAPPING 3 X 16 8
10 93913-25380 SCREW, TAPPING, 5X14(PO) 3
11 94103-05700 WASHER, PLAIN, 5MM 3
