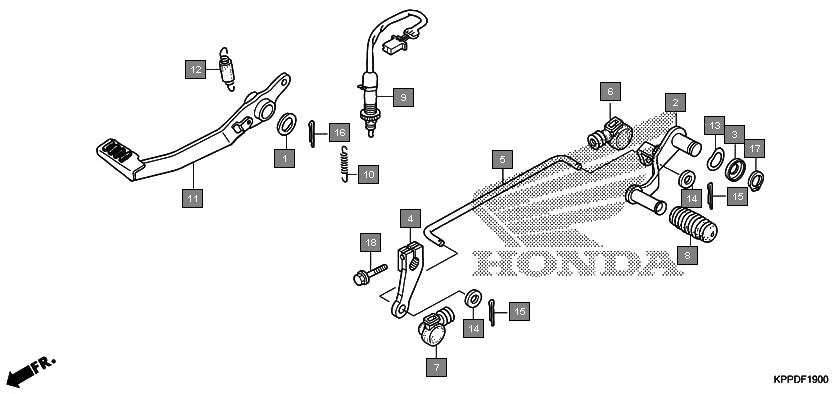

F-19 - PEDAL
HONDA CBR150R CBR150RG · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16502-880-000 | WASHER, SWITCH BOSS | 1 | |
| 2 | 24701-KPP-N00 | PEDAL COMP., GEAR CHANGE | 1 | |
| 3 | 24703-KGH-900 | WASHER, CHANGE PEDAL | 1 | |
| 4 | 24711-KPP-900 | ARM, GEAR CHANGE | 1 | |
| 5 | 24720-KPP-T00 | ROD, TIE | 1 | |
| 6 | 24721-KPP-900 | COVER, CHANGE PEDAL | 1 | |
| 7 | 24721-KW6-960 | COVER, CHANGE PEDAL | 1 | |
| 8 | 24781-449-000 | RUBBER, GEAR CHANGE | 1 | |
| 9 | 35350-KPP-N01 | SWITCH ASSY., RR. STOP | 1 | |
| 10 | 35357-KBA-900 | SPRING, STOP SWITCH | 1 | |
| 11 | 46500-KPP-T00 | PEDAL COMP., BRAKE | 1 | |
| 12 | 46513-KPP-900 | SPRING ASSY., BRAKE PEDAL | 1 | |
| 13 | 90405-ZA8-800 | WASHER, WAVE, 15MM | 1 | |
| 14 | 90502-155-000 | WASHER,PLAIN,7MM | 2 | |
| 15 | 94201-20120 | PIN, SPLIT, 2.0X12 | 2 | |
| 16 | 94201-25220 | PIN, SPLIT, 2.5X22 | 1 | |
| 17 | 94510-15000 | CIRCLIP, EXTERNAL, 15MM | 1 | |
| 18 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 18 | 95702-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
