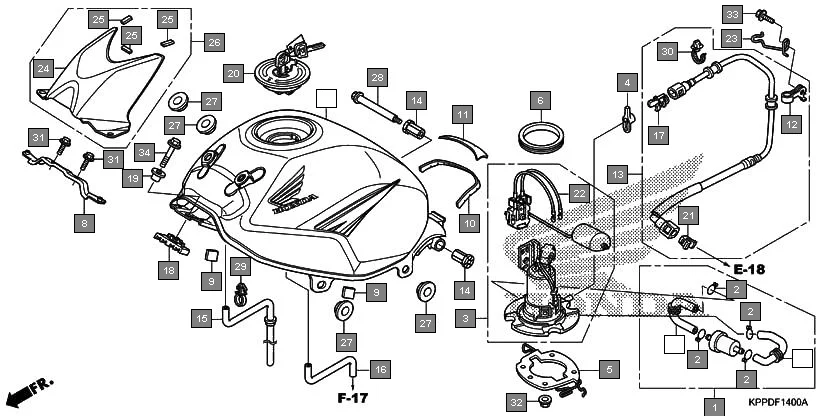

F-14 - FUEL TANK
HONDA CBR150R CBR150RG · 45 parts
Parts in This Assembly (45)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06160-KPP-T00 | FILTER KIT, FUEL | 1 | |
| 2 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 4 | |
| 3 | 16700-KPP-T01 | PUMP ASSY., FUEL | 1 | |
| 4 | 16718-GFZ-000 | DAMPER, CONNECTOR | 1 | |
| 5 | 17507-KPP-T00 | PLATE, SETTING | 1 | |
| 6 | 17515-GBJ-M30 | PACKING, FUEL PUMP | 1 | |
| 7 | 17520-KPP-N10ZA | TANK SET, FUEL(WL)*TYPE2* | 1 | |
| 7 | 17520-KPP-N10ZB | TANK SET, FUEL(WL)*TYPE1* | 1 | |
| 7 | 17520-KPP-N00ZA | TANK SET, FUEL(WL)*TYPE2* | 1 | |
| 7 | 17520-KPP-N00ZB | TANK SET, FUEL(WL)*TYPE1* | 1 | |
| 8 | 17522-KPP-T00 | STAY, TANK LID | 1 | |
| 9 | 17525-KPP-T00 | RUBBER, FUEL TANK | 2 | |
| 10 | 17527-KPP-N00 | FILM A,TANK PROTECTOR | 1 | |
| 11 | 17528-KPP-N00 | FILM B, TANK PROTECTOR | 1 | |
| 12 | 17568-KTY-D30 | CLAMPER, FUEL FEED HOSE | 1 | |
| 13 | 17570-KPP-T00 | HOSE COMP., FUEL FEED | 1 | |
| 14 | 17572-KPP-T00 | CUSHION, FUEL TANK RR. PIVOT | 2 | |
| 15 | 17575-KPP-N00 | TUBE, FUEL TANK BREATHER | 1 | |
| 16 | 17576-KPP-T00 | TUBE, DRAIN | 1 | |
| 17 | 17577-KSS-B31 | RETAINER(GRAY)(TOKAI) | 1 | |
| 18 | 17613-KPP-T00 | CUSHION, FUEL TANK | 1 | |
| 19 | 17614-KPP-T00 | COLLAR, FUEL TANK | 1 | |
| 20 | 17620-KWF-901 | CAP COMP., FUEL FILLER | 1 | |
| 21 | 17711-MGE-003 | RETAINER | 1 | |
| 22 | 37800-KPP-T01 | FUEL UNIT | 1 | |
| 23 | 50187-KPP-T00 | GUIDE, BREATHER TUBE | 1 | |
| 24 | 64450-KPP-T00ZK | COVER, FUEL TANK *YR250* VIBRANT ORANGE | 1 | |
| 24 | 64450-KPP-T00ZM | COVER, FUEL TANK *NH1* BLACK | 1 | |
| 24 | 64450-KPP-T00ZL | COVER, FUEL TANK *R321* SPORTS RED | 1 | |
| 25 | 64455-KPP-T00 | RUBBER SPONGE, TANK COVER | 3 | |
| 26 | 64700-KPP-T00ZG | COVER ASSY., FUEL TANK *YR250* VIBRANT ORANGE | 1 | |
| 26 | 64700-KPP-T00ZJ | COVER ASSY., FUEL TANK *NH1* BLACK | 1 | |
| 26 | 64700-KPP-T00ZH | COVER ASSY., FUEL TANK *R321* SPORTS RED | 1 | |
| 27 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 6 | |
| 28 | 90135-KPP-T00 | BOLT, TANK HINGE | 1 | |
| 29 | 90659-680-013 | CLIP, WIRE HARNESS | 1 | |
| 30 | 91540-KPH-902 | CLIP, HARNESS BAND | 1 | |
| 31 | 93401-06014-00 | BOLT-WASHER, 6X14 | 2 | |
| 32 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 33 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 33 | 95702-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 34 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 1 | |
| 34 | 95702-08025-00 | BOLT, FLANGE, 8X25 | 1 | |
| 35 | 17541-KPP-T00 | TUBE A, FUEL PUMP | 1 | |
| 36 | 17542-KPP-T00 | TUBE B, FUEL PUMP | 1 | |
