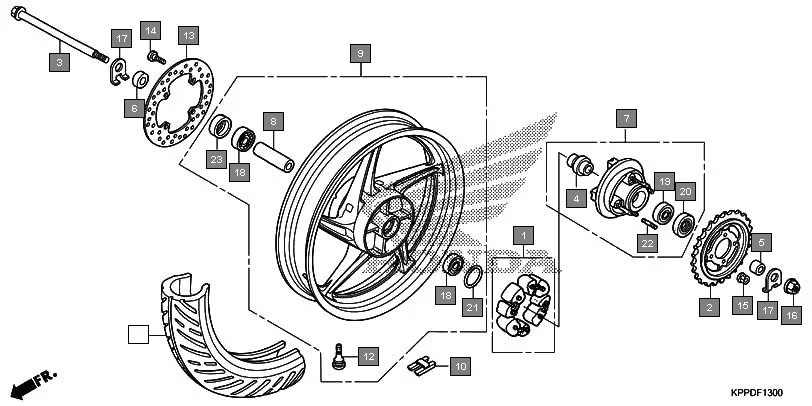

F-13 - REAR WHEEL
HONDA CBR150R CBR150RG · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KSP-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41200-KPP-N00 | SPROCKET COMP., FINAL DRIVEN (43T) | 1 | |
| 3 | 42301-KPP-T00 | AXLE, RR. WHEEL | 1 | |
| 4 | 42303-KPP-T00 | SLEEVE, RR. WHEEL | 1 | |
| 5 | 42311-KPP-T00 | COLLAR, L. RR. WHEEL SIDE | 1 | |
| 6 | 42313-KPP-T00 | COLLAR, R. RR. WHEEL SIDE | 1 | |
| 7 | 42615-KPP-N00ZA | FLANGE SUB ASSY., DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 42620-KPP-T00 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 9 | 42650-KPP-N00ZA | WHEEL SUB ASSY., RR. | 1 | |
| 10 | 42704-MER-D00 | WEIGHT, BALANCE(10G) | 1 | |
| 10 | 42705-MER-D00 | WEIGHT, BALANCE(20G) | 1 | |
| 10 | 42706-MER-D00 | WEIGHT, BALANCE(30G) | 1 | |
| 11 | 42711-KPP-N01 | TIRE, RR.(MRF)(130/70-17 M/C 62P) | 1 | |
| 11 | 42711-KPP-N02 | TIRE, RR.(TVS)(130/70-17 M/C 62P) | 1 | |
| 12 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 13 | 43251-KSP-B01ZA | DISK, RR. BRAKE(YUTAKA) *TYPEA* | 1 | |
| 14 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 4 | |
| 15 | 90304-GE8-003 | NUT, U, 10MM(FUSE RASHI) | 4 | |
| 15 | 90304-KST-942 | NUT FLG.PT 10MM | 4 | |
| 15 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 4 | |
| 16 | 90305-GE8-003 | NUT, U, 14MM | 1 | |
| 16 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 16 | 90305-KVN-902 | NUT, FLANGE, 14MM(LEO FASTENERS) | 1 | |
| 17 | 90559-KPP-T00 | WASHER, RR. AXLE | 2 | |
| 18 | 91051-KPP-N01 | BEARING, RADIAL BALL, 6302U (FAG) | 2 | |
| 18 | 91051-KPP-T01 | BEARING, RADIAL BALL, 6302U (SKF) | 2 | |
| 19 | 91054-KPP-N01 | BEARING, RADIAL BALL, 6004UU (FAG) | 1 | |
| 19 | 91054-MW5-003 | BEARING, RADIAL BALL, 6004(UU) | 1 | |
| 20 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 20 | 91257-230-005 | OIL SEAL, 28X42X7(NOK) | 1 | |
| 21 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 22 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
