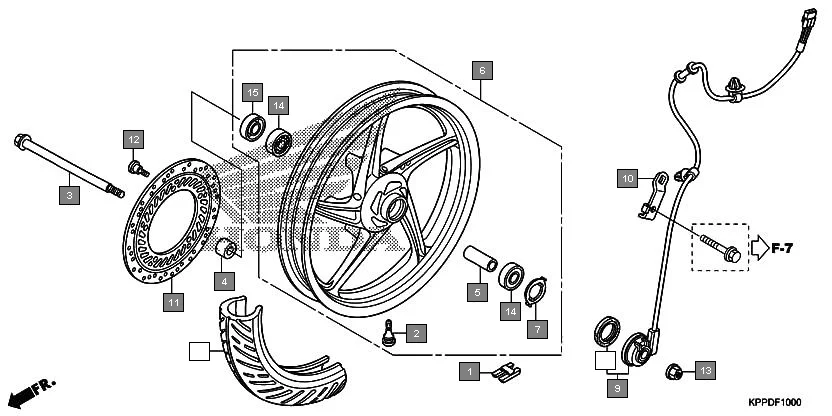

F-10 - FRONT WHEEL
HONDA CBR150R CBR150RG · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42704-MER-D00 | WEIGHT, BALANCE(10G) | 1 | |
| 1 | 42705-MER-D00 | WEIGHT, BALANCE(20G) | 1 | |
| 1 | 42706-MER-D00 | WEIGHT, BALANCE(30G) | 1 | |
| 2 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 3 | 44301-KPP-T00 | AXLE, FR. WHEEL | 1 | |
| 4 | 44311-KPP-T00 | COLLAR, FR. WHEEL SIDE | 1 | |
| 5 | 44620-KPP-T00 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 6 | 44650-KPP-N00ZA | WHEEL SUB ASSY., FR.*NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 44680-KSP-B00 | RETAINER,GEAR BOX | 1 | |
| 8 | 44711-KPP-N01 | TIRE, FR.(MRF)(100/80-17 M/C 52P) | 1 | |
| 8 | 44711-KPP-N02 | TIRE, FR.(TVS)(100/80-17 M/C 52P) | 1 | |
| 9 | 44800-KPP-T02 | SENSOR ASSY., SPEED | 1 | |
| 10 | 44817-KPP-T00 | CLAMPER A, SPEED SENSOR CORD | 1 | |
| 11 | 45251-KRY-971 | DISK, FR BRAKE | 1 | |
| 12 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 5 | |
| 13 | 90306-KF0-003 | NUT, FLANGE, 12MM(FUSERASHI) | 1 | |
| 13 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 91053-KWB-601 | BEARING, RADIAL BALL, 6301U (NTN) | 2 | |
| 14 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 15 | 91252-KGH-901 | DUST SEAL, 23X37X7(ARAI) | 1 | |
| 15 | 91252-KGH-902 | DUST SEAL, 23X37X7(NOK) | 1 | |
| 16 | 91258-KWC-901 | DUST SEAL, 40X50X5 | 1 | |
