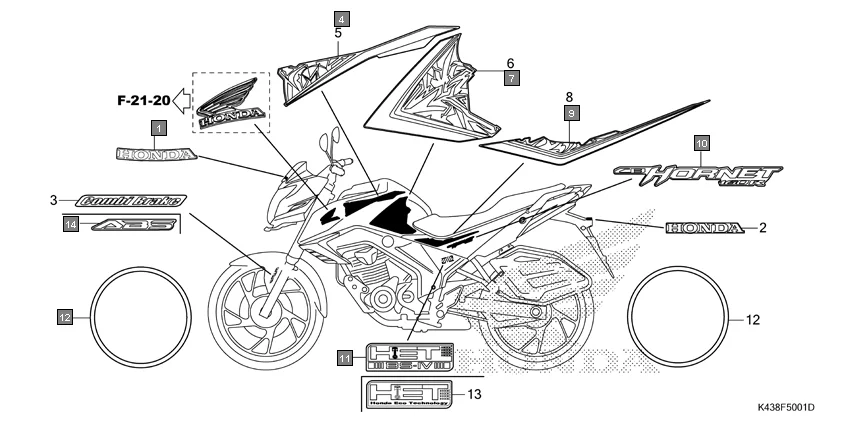

F-50-1 - MARK/STRIPE(2)
HONDA CB Hornet 160R CBF160MAJ · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K43-D00ZA | MARK, HONDA(85MM) *TYPE1* | 1 | |
| 4 | 86641-K43-960ZA | STRIPE A, R. FUEL TANK COVER *TYPE2* | 1 | |
| 4 | 86641-K43-960ZB | STRIPE A, R. FUEL TANK COVER *TYPE1* + Yellow | 1 | |
| 4 | 86641-K43-D40ZA | STRIPE A, R. FUEL TANK COVER *TYPE4* | 1 | |
| 4 | 86641-K43-D40ZB | STRIPE A, R. FUEL TANK COVER *TYPE3* | 1 | |
| 7 | 86644-K43-D40ZA | STRIPE B, L. FUEL TANK COVER *TYPE4* | 1 | |
| 7 | 86644-K43-D40ZB | STRIPE B, L. FUEL TANK COVER *TYPE3* | 1 | |
| 7 | 86644-K43-960ZA | STRIPE B, L. FUEL TANK COVER *TYPE2* | 1 | |
| 7 | 86644-K43-960ZB | STRIPE B, L. FUEL TANK COVER *TYPE1* + Yellow | 1 | |
| 9 | 86772-K43-960ZA | STRIPE, L. RR. GARNISH *TYPE2* | 1 | |
| 9 | 86772-K43-D40ZB | STRIPE, L. RR. GARNISH *TYPE3* | 1 | |
| 10 | 86773-K43-960ZA | MARK, RR. GARNISH *TYPE2* | 2 | |
| 11 | 86833-K43-900ZA | MARK, HET BS 4 *TYPE1* (R SIDE ONLY) | 1 | |
| 12 | 86421-K43-960ZB | STRIPE, WHEEL *TYPE2* | 4 | |
| 12 | 86421-K43-D40ZB | STRIPE, WHEEL *TYPE3* | 4 | |
| 14 | 86611-K43-D20ZA | MARK, ABS *TYPE3* | 1 | |
| 14 | 86611-K43-D20ZC | MARK, ABS *TYPE1* (R. SIDE ONLY) | 1 | |
