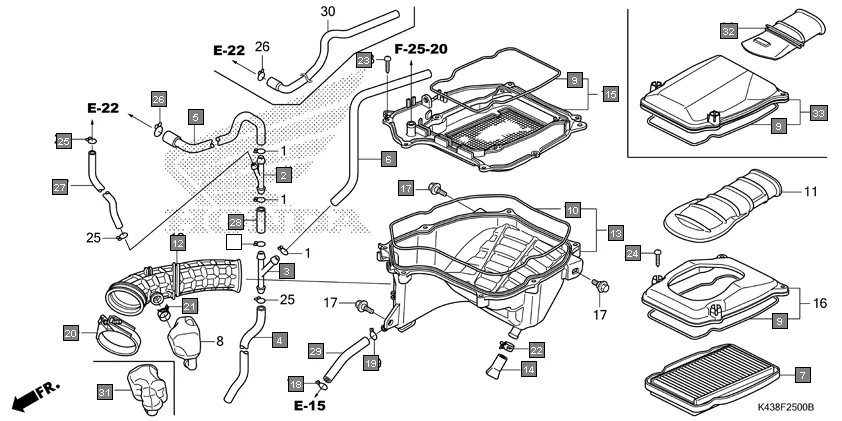

F-25 - AIR CLEANER
HONDA CB Hornet 160R CBF160MAJ · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16163-GHB-600 | CLIP, TUBE | 4 | |
| 2 | 16180-K43-900 | JOINT A, 3WAY | 1 | |
| 3 | 16181-K43-900 | JOINT B, 3WAY | 1 | |
| 4 | 16197-K43-D00 | TUBE, DRAIN | 1 | |
| 5 | 16198-K43-D00 | TUBE A, AIR VENT | 1 | |
| 6 | 16199-K43-D00 | TUBE B, AIR VENT | 1 | |
| 7 | 17211-K38-901 | ELEMENT COMP., AIR CLEANER | 1 | |
| 9 | 17214-K38-900 | SEAL, AIR CLEANER | 2 | |
| 10 | 17215-KSP-900 | SEAL A AIR/C | 1 | |
| 12 | 17222-K38-900 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 13 | 17225-K43-D00 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 14 | 17227-KTE-910 | V.TUBE 11X15X40 | 1 | |
| 15 | 17235-K38-901 | HOLDER SUB ASSY., AIR CLEANER | 1 | |
| 17 | 90111-162-000 | BOLT, FLANGE, 6MM | 3 | |
| 18 | 90651-KM9-000 | CLIP B14 TUBE | 1 | |
| 19 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 20 | 90652-K43-900 | BAND, AIR CLEANER CONNECTING TUBE(54MM) | 1 | |
| 21 | 90678-K38-900 | CLIP, RESONATOR | 1 | |
| 22 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 23 | 93903-25480 | SCREW TAPPING 5X20 | 7 | |
| 24 | 93903-25580 | SCREW TAPPING 5X25 | 4 | |
| 25 | 95002-02089 | CLIP, B1 8 TUBE | 3 | |
| 26 | 90652-KSP-D20 | CLIP, TUBE(C11) | 1 | |
| 27 | 95005-45170-50 | TUBE, 4.5X170(95005-45001-50M) | 1 | |
| 28 | 95005-50090-50 | TUBE, 5X90 | 1 | |
| 29 | 95005-80095-20 | TUBE, 8X95(95005-80001-20M) | 1 | |
| 31 | 17213-K43-D00 | RESONATOR | 1 | |
| 32 | 17219-K43-D00 | DUCT, AIR CLEANER | 1 | |
| 33 | 17245-K43-D00 | COVER SUB ASSY., AIR CLEANER | 1 | |
