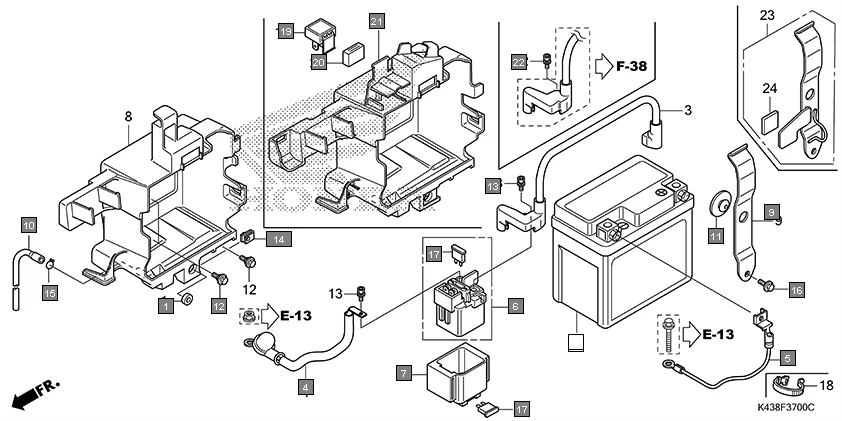

F-37 - BATTERY
HONDA CB Hornet 160R CBF160MAJ · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17223-KVX-600 | COLLAR, AIR CLEANER | 1 | |
| 2 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 2 | 31500-KRP-N41 | BATTERY ASSY MF 5 | 1 | |
| 4 | 32410-K43-900 | CABLE, STARTER MOTOR | 1 | |
| 5 | 32601-K38-900 | CABLE, BATTERY EARTH | 1 | |
| 6 | 35850-K38-901 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 7 | 35856-K43-900 | RUBBER, SHOCK | 1 | |
| 9 | 50386-K43-900 | BAND, BATTERY | 1 | |
| 10 | 50388-K38-900 | TUBE, BATTERY BOX | 1 | |
| 11 | 83618-323-000 | RUBBER, BATTERY BOX | 1 | |
| 13 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 1 | |
| 14 | 90311-MT3-000 | NUT, CLIP, 6 MM | 1 | |
| 17 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 19 | 38301-K43-D01 | RELAY COMP., WINKER | 1 | |
| 20 | 38306-K38-901 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 21 | 50384-K43-D00 | BOX, BATTERY | 1 | |
