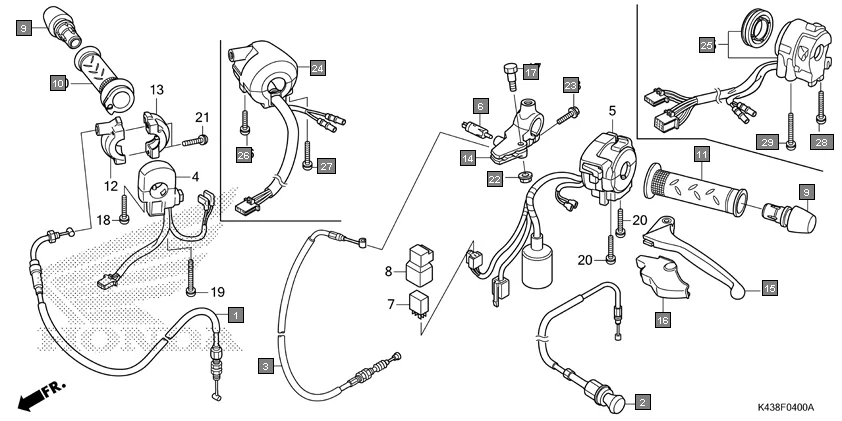

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA CB Hornet 160R CBF160MAJ · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K43-901 | CABLE COMP., THROTTLE | 1 | |
| 2 | 17950-K43-901 | CABLE COMP., CHOKE | 1 | |
| 3 | 22870-K43-901 | CABLE COMP., CLUTCH | 1 | |
| 6 | 35330-KWS-901 | SWITCH ASSY., CLUTCH | 1 | |
| 9 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 10 | 53140-KSP-A70 | GRIP COMP THROT | 1 | |
| 11 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 14 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 15 | 53178-K21-900 | LEVER COMP., L. HANDLE | 1 | |
| 16 | 53179-KWF-950 | COVER, L. HANDLE LEVER | 1 | |
| 17 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 23 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
| 24 | 35150-K43-D01 | SWITCH ASSY., STARTER | 1 | |
| 25 | 35200-K43-D01 | SWITCH ASSY., WINKER | 1 | |
| 26 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 27 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 28 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 29 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
