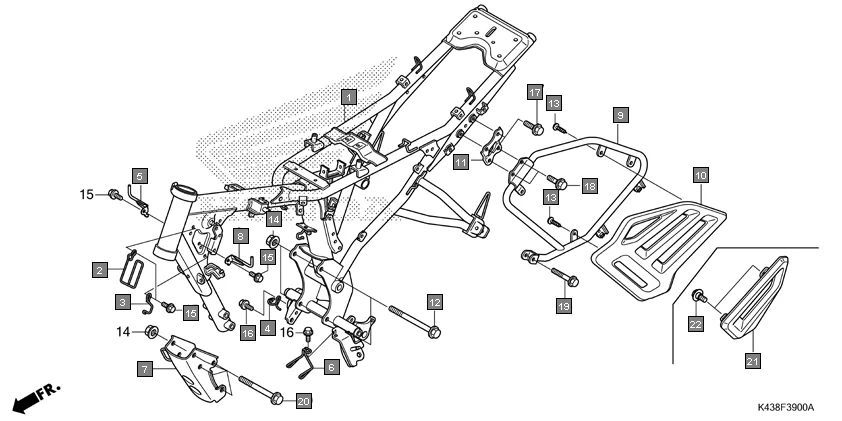

F-39 - FRAME BODY
HONDA CB Hornet 160R CBF160MAJ · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-K43-D30 | BODY COMP., FRAME | 1 | |
| 1 | 50100-K43-D20 | BODY COMP., FRAME | 1 | |
| 2 | 50211-K43-D00 | GUIDE, HARNESS | 1 | |
| 3 | 50212-K43-900 | GUIDE, CLUTCH CABLE | 1 | |
| 4 | 50219-K43-900 | GUIDE B, AIR VENT | 1 | |
| 5 | 50295-K43-900 | STAY, R. INNER COVER | 1 | |
| 6 | 50297-K43-900 | GUIDE, DRAIN TUBE | 1 | |
| 7 | 50351-K43-900 | PLATE COMP., FR. ENGINE HANGER | 1 | |
| 8 | 50395-K43-900 | STAY, L. INNER COVER | 1 | |
| 9 | 51103-K43-D00 | GUARD COMP., SARI | 1 | |
| 10 | 51104-K43-900 | COVER, SARI GUARD | 1 | |
| 11 | 51105-K43-900 | PLATE, SARI GUARD | 1 | |
| 12 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 13 | 93903-25280 | SCREW, TAPPING 5X12 | 4 | |
| 16 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 17 | 95701-08012-07 | BOLT FLANGE 8X12 | 2 | |
| 18 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 2 | |
| 19 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 1 | |
| 20 | 95801-10090-00 | BOLT, FLANGE, 10X90 | 4 | |
| 21 | 51108-K43-D00 | COVER B, SARI | 1 | |
| 22 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
