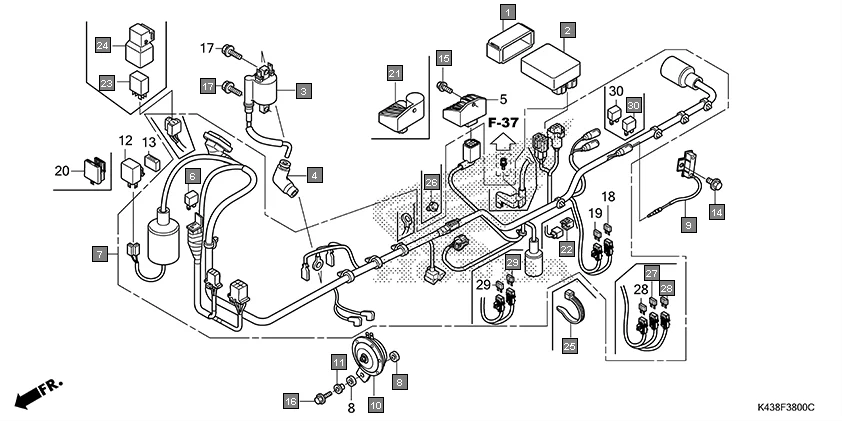

F-38 - WIRE HARNESS
HONDA CB Hornet 160R CBF160MAJ · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KWP-D21 | CUSHION, C.D.I. UNIT (SHINDENGEN) | 1 | |
| 2 | 30410-K43-D01 | C.D.I. UNIT(DC) | 1 | |
| 3 | 30500-K38-901 | COIL ASSY., IGNITION | 1 | |
| 4 | 30700-KZA-W01 | CAP ASSY. NOISE SUPPRESSOR | 1 | |
| 6 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 7 | 32100-K43-D20 | HARNESS, WIRE | 1 | |
| 8 | 33714-K38-900 | RUBBER, TAILLIGHT BRACKET | 2 | |
| 9 | 35400-K43-901 | RESISTOR COMP. | 1 | |
| 10 | 38110-K43-901 | HORN COMP.(HIGH) | 1 | |
| 11 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 14 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 16 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 21 | 31600-K86-D01 | RECTIFIER COMP., REGULATE (SHINDENGEN) | 1 | |
| 22 | 32606-GEV-761 | CAP, DUMMY(4P)(RED) | 1 | |
| 23 | 38502-KSP-910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 | |
| 24 | 38506-K23-900 | SUSPENSION, POWER RELAY | 1 | |
| 25 | 90651-KV6-003 | BAND WIRE | 1 | |
