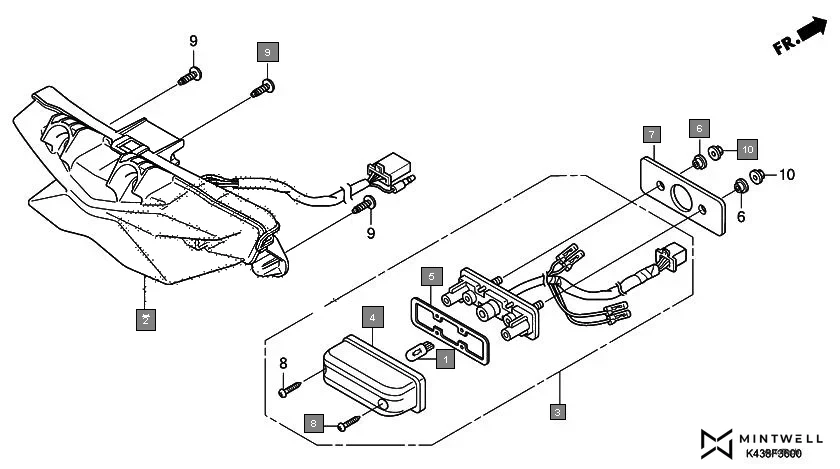

F-36 - TAILLIGHT
HONDA CB Hornet 160R CBF160MAJ · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33301-KYJ-901 | BULB, WEDGE BASE(T10 12V 5W) | 1 | |
| 2 | 33701-K43-901 | TAILLIGHT UNIT(RINDER)(LED) | 1 | |
| 3 | 33720-K43-901 | LIGHT ASSY., LICENSE(12V 5W) | 1 | |
| 4 | 33723-KSP-B01 | COVER COMP. | 1 | |
| 5 | 33729-KSP-B01 | PACKING, LENS | 1 | |
| 6 | 80202-KVE-900 | COLLAR LICENSE LIGHT | 2 | |
| 7 | 80203-KVE-900 | RUBBER LICENSE LIGHT | 1 | |
| 8 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 10 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
