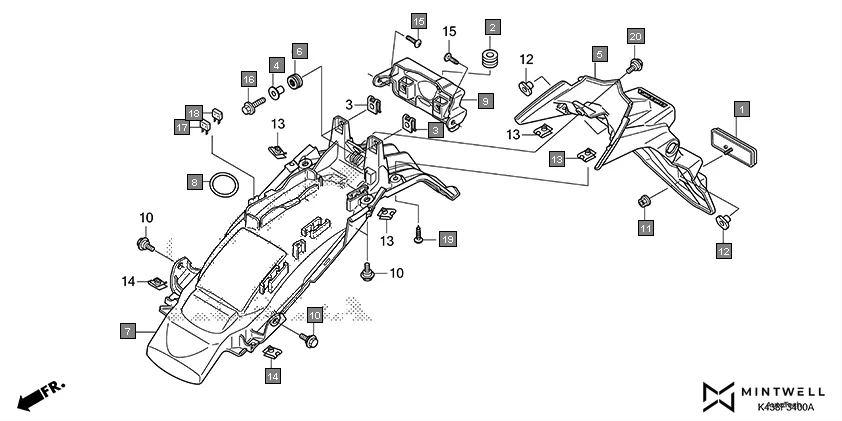

F-34 - REAR FENDER
HONDA CB Hornet 160R CBF160MAJ · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 1 | |
| 3 | 80102-KZJ-900 | NUT, CLIP, 6MM | 2 | |
| 4 | 80105-KZJ-900 | COLLAR, RR. FENDER INNER | 2 | |
| 5 | 80110-K43-900ZA | FENDER SET A, RR.(WL) *TYPE1* | 1 | |
| 6 | 80112-KVN-900 | RUBBER, RR FENDER | 2 | |
| 7 | 80121-K43-900 | FENDER B, RR. | 1 | |
| 8 | 80124-K26-900 | BAND, TOOL | 1 | |
| 9 | 80131-K43-900 | STAY, INNER FENDER | 1 | |
| 12 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 14 | 90677-KAN-T00 | NUT, CLIP, 5MM | 2 | |
| 15 | 93903-35320 | SCREW, TAPPING, 5X16 | 2 | |
| 17 | 98200-41000 | FUSE, MINI(10A) | 1 | |
| 18 | 98200-41500 | FUSE, MINI(15A) | 1 | |
| 19 | 93903-35380 | SCREW TAPPING 5X16 | 2 | |
| 20 | 90111-147-000 | BOLT, FLANGE, 6MM | 1 | |
