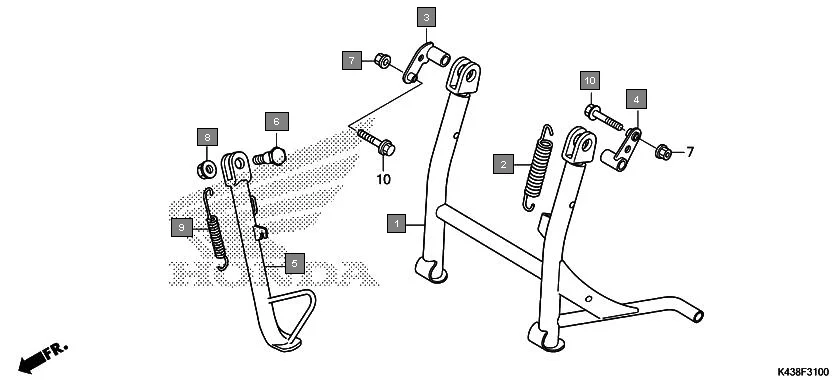

F-31-STAND
HONDACB Hornet 160R CBF160MAJ · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50500-K43-900 | STAND COMP., MAIN | 1 | |
| 2 | 50520-K21-900 | SPRING, MAIN STAND | 1 | |
| 3 | 50526-K43-900 | SHAFT, MAIN STAND PIVOT(R.) | 1 | |
| 4 | 50527-K43-900 | SHAFT, MAIN STAND PIVOT(L.) | 1 | |
| 5 | 50530-K43-900 | BAR COMP., SIDE STAND | 1 | |
| 6 | 90107-GN1-010 | SCREW SIDE STAND PIVOT | 1 | |
| 7 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 8 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 9 | 50531-K67-A00 | SPRING A, SIDE STAND | 1 | |
| 10 | 95701-06030-00 | BOLT, FLANGE, 6X30 | 2 |
