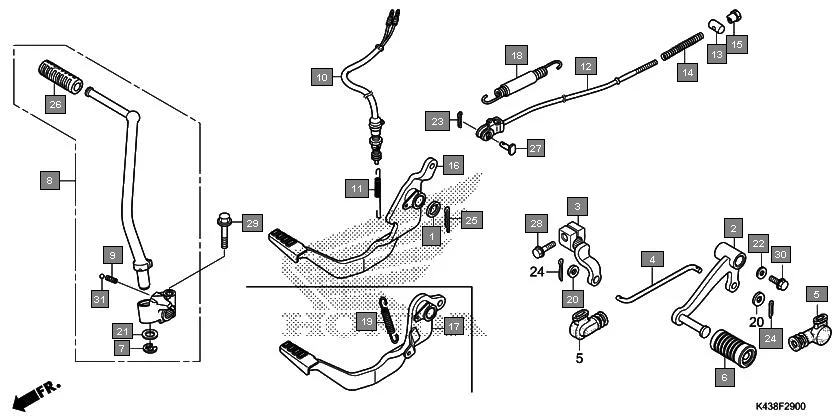

F-29 - PEDAL
HONDA CB Hornet 160R CBF160MAJ · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16502-880-000 | WASHER, SWITCH BOSS | 1 | |
| 2 | 24701-K43-900 | PEDAL, GEAR CHANGE | 1 | |
| 3 | 24711-K43-900 | ARM, GEAR CHANGE | 1 | |
| 4 | 24720-K43-900 | ROD, TIE | 1 | |
| 5 | 24721-GS3-000 | COVER,CHANGE PEDAL | 2 | |
| 6 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 7 | 28293-333-000 | CLIP, KICK STARTER ARM | 1 | |
| 8 | 28300-K43-900 | ARM ASSY., KICK STARTER | 1 | |
| 9 | 28333-KK0-000 | SPRING, KICK STARTER ARM SET | 1 | |
| 10 | 35350-K38-901 | SWITCH ASSY., RR. STOP | 1 | |
| 11 | 35357-KBA-900 | SPRING, STOP SWITCH | 1 | |
| 12 | 43451-K43-900 | ROD COMP., RR. BRAKE | 1 | |
| 13 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 14 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 15 | 43459-KSP-900 | NUT RR. BRK. ADJUST | 1 | |
| 16 | 46500-K43-900 | PEDAL COMP., BRAKE | 1 | |
| 17 | 46500-K43-910 | PEDAL COMP., BRAKE | 1 | |
| 18 | 46510-K21-900 | SPRING SET, BRAKE PEDAL | 1 | |
| 19 | 46514-KN5-670 | SPG. BRAKE PEDAL | 1 | |
| 20 | 90502-K43-900 | WASHER, PLAIN, 7MM | 2 | |
| 21 | 90505-KRM-860 | WASHER, 15.5 X 22 | 1 | |
| 22 | 94103-06000 | WASHER PLAIN,6MM | 1 | |
| 23 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 24 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 25 | 94201-25220 | PIN, SPLIT, 2.5X22 | 1 | |
| 26 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 27 | 95015-53000 | PIN, C JOINT | 1 | |
| 28 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 31 | 96211-08000 | BALL STEEL 8 MM | 1 | |
