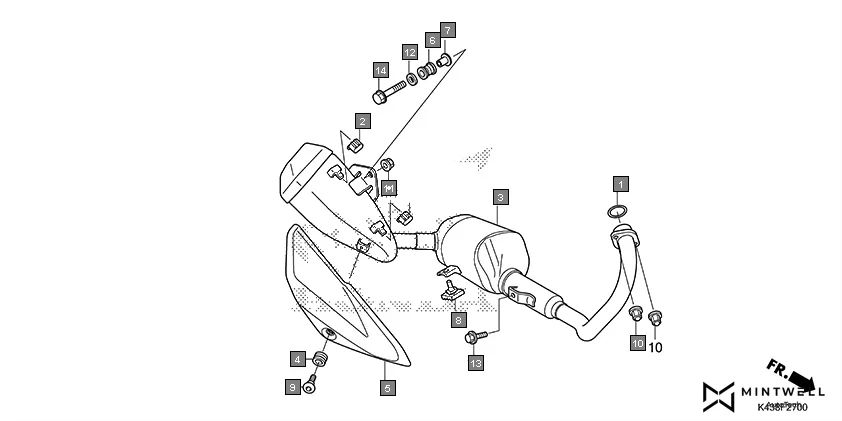

F-27 - EXHAUST MUFFLER
HONDA CB Hornet 160R CBF160MAJ · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-KSP-901 | GASKET, EX. PIPE | 1 | |
| 2 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 2 | |
| 3 | 18300-K43-D00 | MUFFLER COMP., EX. | 1 | |
| 4 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 1 | |
| 5 | 18355-K43-D60 | COVER, MUFFLER | 1 | |
| 5 | 18355-K43-940 | COVER, MUFFLER | 1 | |
| 6 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 7 | 18442-KRC-900 | COLLAR, MUFFLER MOUNT | 1 | |
| 8 | 50524-K15-900 | RUBBER, STAND STOPPER | 1 | |
| 9 | 90113-KYJ-710 | SCREW, PAN, 6X12 | 1 | |
| 10 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 11 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 12 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 13 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 1 | |
| 14 | 95801-10055-07 | BOLT, FLANGE, 10X55 | 1 | |
