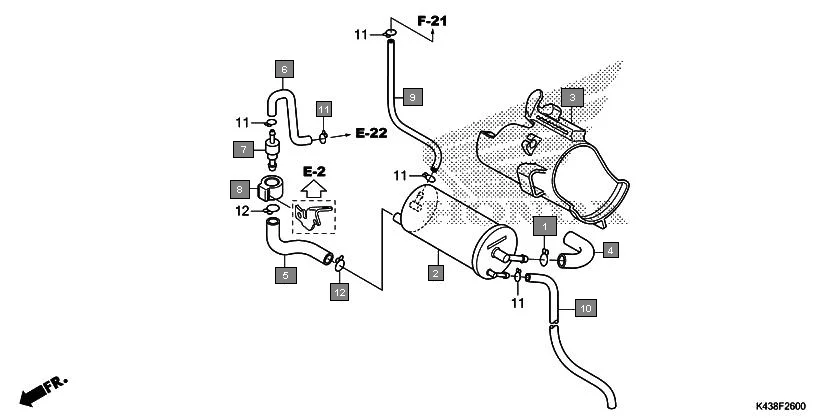

F-26 - CANISTER
HONDA CB Hornet 160R CBF160MAJ · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16163-K43-900 | CLIP | 1 | |
| 2 | 17310-K43-903 | CANISTER COMP | 1 | |
| 3 | 17311-K43-900 | RUBBER, CANISTER | 1 | |
| 4 | 17412-K43-901 | TUBE, AIR | 1 | |
| 5 | 17413-K43-900 | TUBE, CANISTER PURGE | 1 | |
| 6 | 17417-K43-900 | TUBE, CARBURETOR PURGE | 1 | |
| 7 | 17440-K43-901 | VALVE, ONE WAY | 1 | |
| 8 | 17441-K43-900 | RUBBER, ONE WAY VALVE | 1 | |
| 9 | 95001-45260-40 | TUBE, FUEL, 4.5X260 (95001-45001-60M) | 1 | |
| 10 | 95001-45490-40 | TUBE, FUEL, 4.5X490 (95001-45001-60M) | 1 | |
| 11 | 90652-KWP-F00 | CLIP, TUBE(B8) | 5 | |
| 12 | 90601-KWP-F00 | CLIP, TUBE(B12) | 2 | |
