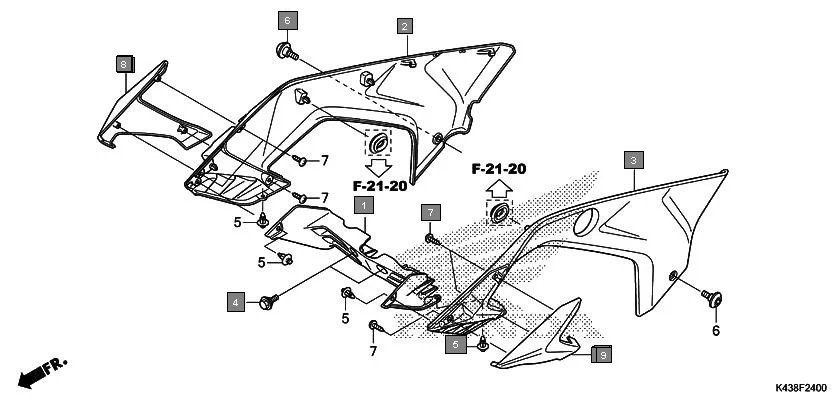

F-24 - SIDE COVER
HONDA CB Hornet 160R CBF160MAJ · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50271-K43-900 | GARNISH, SHROUD CENTER | 1 | |
| 2 | 83560-K43-901ZA | COVER SET, R. SIDE(WL)*TYPE1* | 1 | |
| 3 | 83571-K43-900 | COVER, L. SIDE | 1 | |
| 6 | 90134-K43-900 | SCREW, PAN, 5X14 | 2 | |
| 7 | 93903-24380 | SCREW TAPPING, 4 X 12 | 6 | |
| 8 | 50241-K43-900ZD | GARNISH, R. SHROUD *NHB63P*..PEARL AMAZING WHITE | 1 | |
| 8 | 50241-K43-900ZE | GARNISH, R. SHROUD *Y230M* DAZZLE YELLOW METALLIC | 1 | |
| 8 | 50241-K43-900ZF | GARNISH, R. SHROUD *R321* SPORTS RED | 1 | |
| 8 | 50241-K43-900ZG | GARNISH, R. SHROUD *PB396M* ATHLETIC BLUE METALLIC | 1 | |
| 8 | 50241-K43-900ZA | GARNISH, R. SHROUD *NHB06M* SPACE SILVER METALLIC | 1 | |
| 8 | 50241-K43-900ZB | GARNISH, R. SHROUD *Y196* LEMON ICE YELLOW | 1 | |
| 8 | 50241-K43-900ZC | GARNISH, R. SHROUD *YR250* VIBRANT ORANGE | 1 | |
| 9 | 50251-K43-900ZB | GARNISH, L. SHROUD *Y196* LEMON ICE YELLOW | 1 | |
| 9 | 50251-K43-900ZC | GARNISH, L. SHROUD *YR250* VIBRANT ORANGE | 1 | |
| 9 | 50251-K43-900ZA | GARNISH, L. SHROUD *NHB06M* SPACE SILVER METALLIC | 1 | |
| 9 | 50251-K43-900ZE | GARNISH, L. SHROUD *NHB63P* *Y230M* DAZZLE YELLOW METALLIC | 1 | |
| 9 | 50251-K43-900ZF | GARNISH, L. SHROUD *Y230M* *R321* SPORTS RED | 1 | |
| 9 | 50251-K43-900ZG | GARNISH, L. SHROUD *R321* *PB396M* ATHLETIC BLUE METALLIC | 1 | |
| 9 | 50251-K43-900ZD | GARNISH, L. SHROUD *NHB63P*..PEARL AMAZING WHITE | 1 | |
