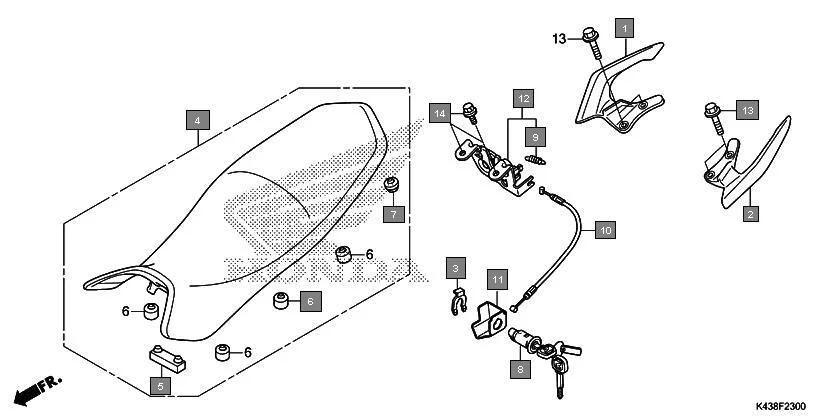

F-23 - SEAT/REAR GRIP
HONDA CB Hornet 160R CBF160MAJ · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K43-900ZB | GRIP, R. RR. *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 2 | 50450-K43-900ZB | GRIP, L. RR. *NH303M*. MAT AXIS GRAY METALLIC | 1 | |
| 3 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 4 | 77200-K43-901 | SEAT COMP., DOUBLE | 1 | |
| 5 | 77205-286-000 | RUBBER `B SEAT SETTING | 1 | |
| 6 | 77206-KTE-910 | RUBBER, SEAT SETTING | 6 | |
| 7 | 77206-KWS-900 | RUBBER, SEAT SETTING | 2 | |
| 8 | 77225-K43-901 | LOCK ASSY., SEAT | 1 | |
| 9 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 | |
| 10 | 77240-K43-900 | CABLE, SEAT LOCK | 1 | |
| 11 | 77241-K43-900 | STAY, SEAT LOCK CABLE | 1 | |
| 12 | 77250-K43-900 | LOCK COMP., SEAT | 1 | |
| 13 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
