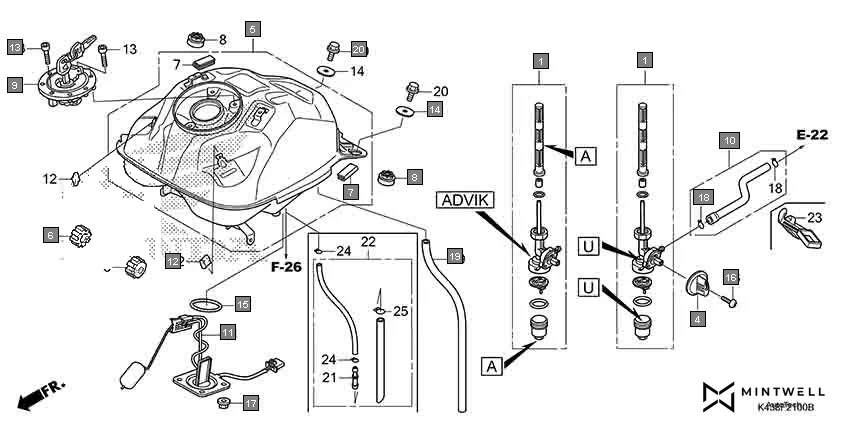

F-21 - FUEL TANK
HONDA CB Hornet 160R CBF160MAJ · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16950-K43-901 | COCK ASSY., FUEL(U) | 1 | |
| 1 | 16950-K43-902 | COCK ASSY., FUEL (A) | 1 | |
| 4 | 16955-K43-900 | LEVER, FUEL COCK | 1 | |
| 5 | 17530-K43-DA0 | TANK SUB ASSY., FUEL | 1 | |
| 6 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 7 | 17612-K43-900 | RUBBER, BODY COVER SETTING | 2 | |
| 8 | 17613-K43-900 | CUSHION, FUEL TANK | 2 | |
| 9 | 17620-KSP-862 | CAP COMP., FUEL FILLER | 1 | |
| 10 | 17681-K43-901 | TUBE, FUEL | 1 | |
| 11 | 37800-K43-901 | FUEL UNIT | 1 | |
| 12 | 77267-KTR-900 | RUBBER, COWL | 2 | |
| 13 | 90111-KSP-860 | BOLT, SOCKET, 4X21 | 3 | |
| 14 | 90136-428-870 | WASHER, TANK SETTING | 2 | |
| 15 | 91351-K21-900 | O-RING, 39.5X5 | 1 | |
| 16 | 93500-04030-0G | SCREW, PAN, 4X30 | 1 | |
| 17 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 18 | 90653-KSP-D00 | CLIP, TUBE(B10) | 2 | |
| 19 | 95005-80700-20 | TUBE, 8X700(95005-80001-20M) | 1 | |
| 20 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
