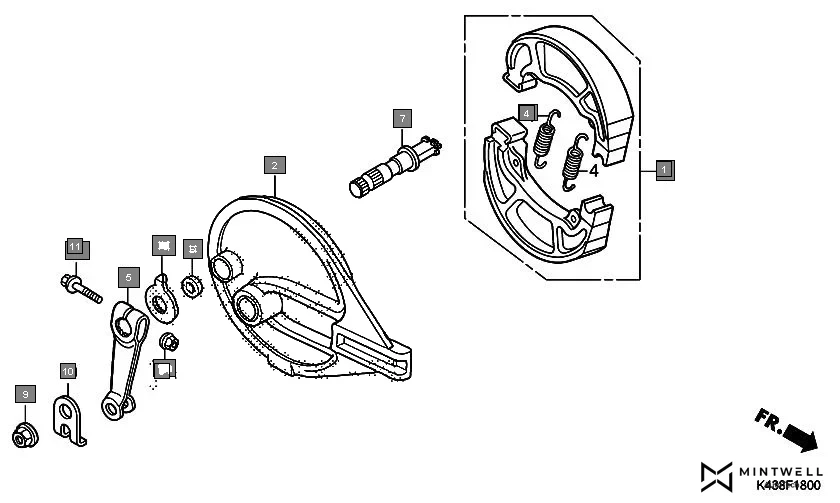

F-18 - REAR BRAKE PANEL
HONDA CB Hornet 160R CBF160MAJ · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KVT-D10 | SHOE SET, BRAKE(ASK) | 1 | |
| 1 | 06430-KTN-700 | SHOE SET, BRAKE(JB) | 1 | |
| 2 | 43100-K43-900ZA | PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 43145-K38-900 | INDICATOR, RR. BRAKE | 1 | |
| 4 | 43151-329-000 | SPRING, BRAKE SHOE (ASK) | 2 | |
| 4 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 5 | 43410-KRY-930 | ARM, REAR BRAKE | 1 | |
| 6 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 7 | 45141-KTC-900 | CAM FR. BRAKE | 1 | |
| 8 | 90302-KTE-911 | NUT FLANGE PT 6MM | 1 | |
| 8 | 90301-KGH-901 | NUT, U, 6MM(FUJI SEIMITSU) | 1 | |
| 9 | 90306-KCJ-951 | NUT, U, 16MM | 1 | |
| 10 | 90559-KYJ-900 | WASHER, RR. SWINGARM | 1 | |
| 11 | 95702-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
