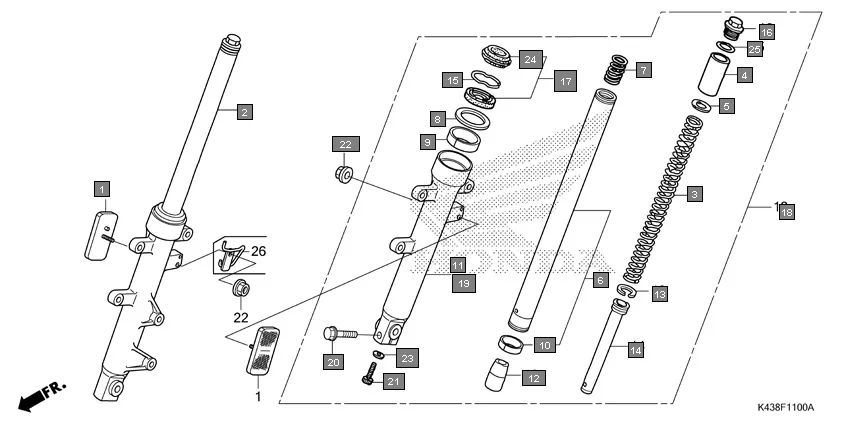

F-11 - FRONT FORK
HONDA CB Hornet 160R CBF160MAJ · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 51400-K43-D21 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 3 | 51401-K43-D01 | SPRING, FR. CUSHION | 2 | |
| 4 | 51402-KYJ-711 | COLLAR, SPRING | 2 | |
| 5 | 51403-ME4-003 | SEAT, SPRING | 2 | |
| 6 | 51410-K43-D01 | PIPE COMP., FR. FORK | 2 | |
| 7 | 51411-K43-D01 | SPRING, REBOUND | 2 | |
| 8 | 51412-461-003 | RING, BACK UP | 2 | |
| 9 | 51414-KFB-901 | BUSH, GUIDE | 2 | |
| 10 | 51415-KFB-901 | BUSH, SLIDER | 2 | |
| 11 | 51420-K43-D21 | CASE, R. BOTTOM | 1 | |
| 12 | 51432-K43-901 | PIECE, OIL LOCK | 2 | |
| 13 | 51437-K43-D01 | RING, PISTON | 2 | |
| 14 | 51440-K43-D01 | PIPE, SEAT | 2 | |
| 15 | 51447-KR6-003 | RING, OIL SEAL STOPPER | 2 | |
| 16 | 51450-K43-D01 | BOLT, FR. FORK | 2 | |
| 17 | 51490-KWL-003 | SEAL SET, FR. FORK | 2 | |
| 18 | 51500-K43-D01 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 19 | 51520-K43-901 | CASE, L. BOTTOM | 1 | |
| 20 | 90109-MR7-000 | BOLT, FLANGE, 8X45 | 1 | |
| 21 | 90116-KV3-701 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 22 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 23 | 90544-283-000 | WASHER, SPECIAL, 8MM(SHOWA) | 2 | |
| 24 | 91254-KAZ-003 | SEAL, DUST | 2 | |
| 25 | 91356-MJ6-741 | O-RING, 30.2X2.4 | 2 | |
