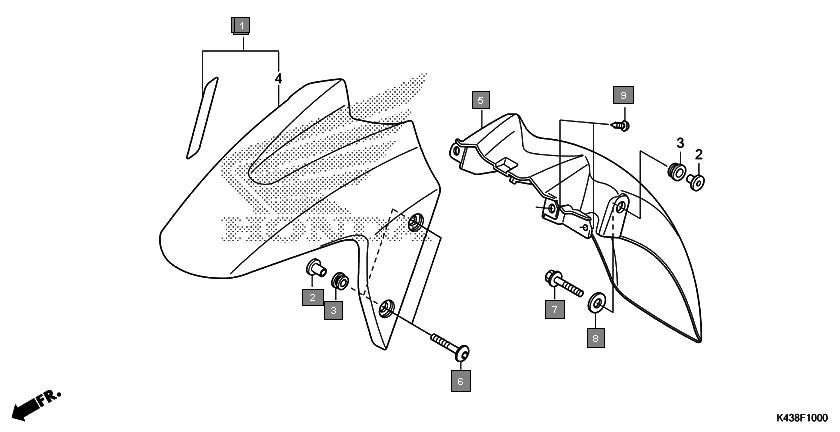

F-10 - FRONT FENDER
HONDA CB Hornet 160R CBF160MAJ · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-K43-D20ZB | FENDER SET A, FR.(WL) *TYPE3* | 1 | |
| 1 | 61000-K43-D20ZC | FENDER SET A, FR.(WL) *TYPE2* | 1 | |
| 1 | 61000-K43-D20ZD | FENDER SET A, FR.(WL) *TYPE1* | 1 | |
| 1 | 61000-K43-D20ZA | FENDER SET A, FR.(WL) *TYPE4* | 1 | |
| 2 | 61103-KRY-900 | COLLAR, A FR.FENDER | 6 | |
| 3 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 6 | |
| 5 | 61121-K43-900 | FENDER B, FR. | 1 | |
| 6 | 90130-KYJ-900 | SCREW, PAN, 6X22 | 4 | |
| 7 | 90131-KYJ-900 | BOLT, FLANGE, 6X22 | 2 | |
| 8 | 90485-286-000 | WASHER, 6MM | 2 | |
