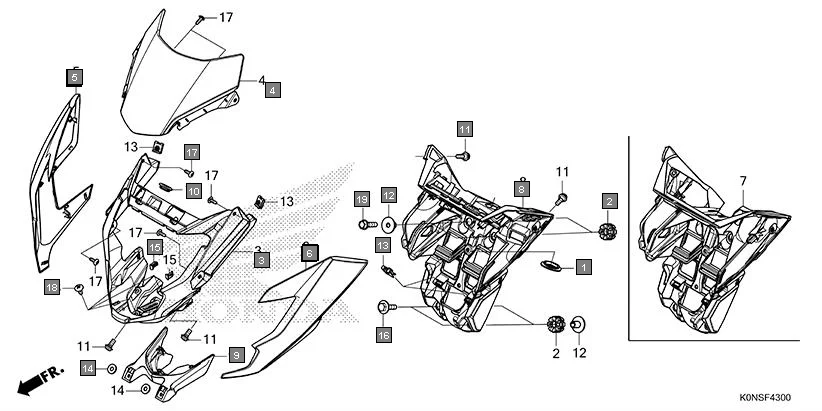

F-43 - FRONT COWL
HONDA SP125 CBF125MEFT · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37312-K67-900 | GROMMET, COMBINATION SWITCH | 1 | |
| 2 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 4 | |
| 3 | 61211-K1K-D50 | COWL, FR. | 1 | |
| 4 | 61220-K1K-D50ZA | WINDSCREEN SET(WL)*TYPE1* | 1 | |
| 5 | 61305-K1K-D50ZC | GARNISH, R. FR.(WOL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 61310-K0N-DU0ZA | GARNISH SET, R. FR.(WL) *TYPE4* | 1 | |
| 5 | 61310-K0N-DU0ZC | GARNISH SET, R. FR.(WL) *TYPE2* | 1 | |
| 5 | 61310-K0N-DU0ZD | GARNISH SET, R. FR.(WL) *TYPE1* | 1 | |
| 5 | 61310-K0N-DU0ZE | GARNISH SET, R. FR.(WL) *TYPE3 1* | 1 | |
| 6 | 61320-K0N-DU0ZA | GARNISH SET, L. FR.(WL) *TYPE4* | 1 | |
| 6 | 61320-K0N-DU0ZC | GARNISH SET, L. FR.(WL) *TYPE2* | 1 | |
| 6 | 61320-K0N-DU0ZD | GARNISH SET, L. FR.(WL)*TYPE1* | 1 | |
| 6 | 61320-K0N-DU0ZE | GARNISH SET, L. FR.(WL)*TYPE3 1* | 1 | |
| 6 | 61306-K1K-D50ZC | GARNISH, L. FR.(WOL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 61311-K0N-DZ0 | COVER, HEADLIGHT RR. | 1 | |
| 9 | 64315-K0N-D00 | STAY, FR. NUMBER PLATE | 1 | |
| 10 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 11 | 90102-K0N-D00 | SCREW, PAN, 5X11.5 | 4 | |
| 12 | 90310-KWS-900 | COLLAR, FR. COWL | 4 | |
| 13 | 90320-KTE-600 | NUT, SPRING, 5MM | 4 | |
| 14 | 90501-K0Y-D00 | WASHER, PLAIN, 5MM | 2 | |
| 15 | 90651-K14-A31 | CLIP, SLIDE | 2 | |
| 16 | 93404-06025-07 | BOLT-WASHER, 6X25 | 2 | |
| 17 | 93903-24320 | SCREW, TAPPING, 4X12 | 6 | |
| 18 | 93903-25220 | SCREW, TAPPING, 5X12 | 3 | |
| 19 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 2 | |
