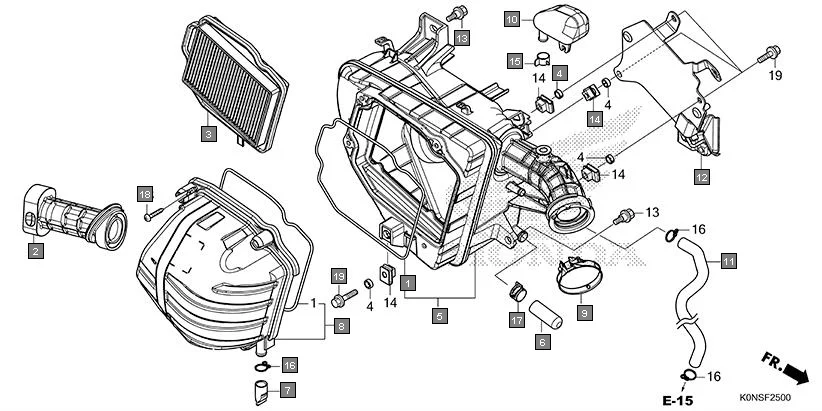

F-25 - AIR CLEANER
HONDA SP125 CBF125MEFT · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17214-K0N-D00 | SEAL, AIR CLEANER | 2 | |
| 2 | 17219-K0N-E00 | DUCT, AIR CLEANER | 1 | |
| 3 | 17220-K0N-D00 | ELEMENT COMP., AIR CLEANER | 1 | |
| 4 | 17223-KVX-600 | COLLAR, AIR CLEANER | 4 | |
| 5 | 17225-K0N-DJ0 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17227-KYY-900 | V.TUBE 11X15X40 | 1 | |
| 7 | 17234-KCC-941 | TUBE, AIR CLEANER DRAIN | 1 | |
| 8 | 17245-K0N-DJ0 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 9 | 17255-K0N-D80 | BAND, AIR CLEANER CONNECTING TUBE(48) | 1 | |
| 10 | 17311-K0N-U01 | RESONATOR..................... | 1 | |
| 11 | 17371-K0N-D00 | TUBE, BREATHER | 1 | |
| 12 | 30450-K0N-DJ0 | STAY, ECU MOUNTING | 1 | |
| 13 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 14 | 90311-KSH-900 | NUT, CLIP, 6MM | 4 | |
| 15 | 90602-KPL-900 | CLAMP, D12 TUBE | 1 | |
| 16 | 90653-KWP-F00 | CLIP, TUBE(B12.5) | 3 | |
| 17 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 18 | 93903-25420 | SCREW, TAPPING, 5X20 | 4 | |
| 19 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 4 | |
