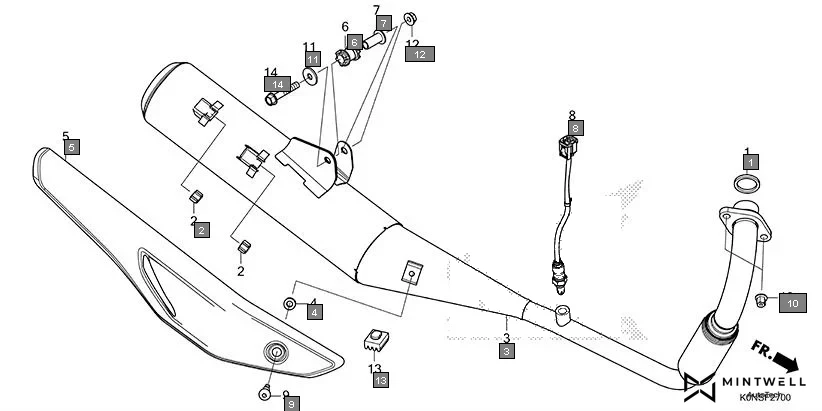

F-27 - EXHAUST MUFFLER
HONDA SP125 CBF125MEFT · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-GE2-921 | GASKET, EX. PIPE | 1 | |
| 2 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 2 | |
| 3 | 18300-K0N-DU0 | MUFFLER COMP., EX. | 1 | |
| 4 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 1 | |
| 5 | 18355-K0N-DJ0 | COVER, MUFFLER | 1 | |
| 6 | 18421-K26-900 | RUBBER, MUFFLER MOUNTING | 1 | |
| 7 | 18422-K0N-D00 | COLLAR, MUFFLER MOUNTING | 1 | |
| 8 | 36531-K0N-DU1 | SENSOR, OXYGEN(ZFAS-S5.1) | 1 | |
| 9 | 90113-KYJ-710 | SCREW, PAN, 6X12 | 1 | |
| 10 | 90304-K0V-AC0 | NUT, FLANGE, 7MM | 2 | |
| 11 | 90501-K0N-D00 | WASHER, PLAIN, 8MM | 1 | |
| 12 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
| 13 | 95011-61000 | RUBBER A, STAND STOPPER | 1 | |
| 14 | 95801-08045-08 | BOLT, FLANGE, 8X45 | 1 | |
