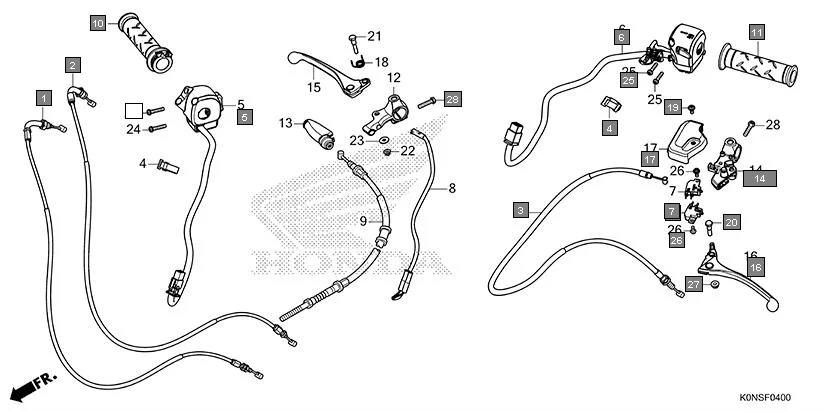

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA SP125 CBF125MEFT · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K0N-D81 | CABLE COMP. A, THROTTLE (SUPRAJIT) | 1 | |
| 2 | 17920-K0N-D81 | CABLE COMP. B, THROTTLE (SUPRAJIT) | 1 | |
| 3 | 22870-K0V-BG1 | CABLE COMP., CLUTCH | 1 | |
| 4 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 5 | 35130-K0N-DZ1 | SWITCH ASSY., STARTER & IDLE STOP | 1 | |
| 6 | 35200-K0N-DZ1 | SWITCH ASSY., WINKER | 1 | |
| 7 | 35340-K0N-DU1 | SWITCH ASSY., FR. STOP | 2 | |
| 7 | 35340-MGS-D31 | SWITCH ASSY., FR. STOP | 2 | |
| 10 | 53140-K0N-D00 | GRIP COMP., THROTTLE | 1 | |
| 11 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 14 | 53172-K0N-DU0 | BRACKET, L. HANDLE LEVER | 1 | |
| 16 | 53178-K0N-DU0 | LEVER COMP., L. HANDLE | 1 | |
| 17 | 53179-K0N-DU0 | COVER, L. HANDLE LEVER | 1 | |
| 20 | 90114-428-870 | BOLT,HANDLE LEVER PIVOT | 1 | |
| 24 | 93892-05016-07 | SCREW-WASHER, 5X16 | 2 | |
| 25 | 93892-05025-07 | SCREW, WASHER, 5X25 | 2 | |
| 26 | 93893-04012-07 | SCREW-WASHER, 4X12 | 2 | |
| 28 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
