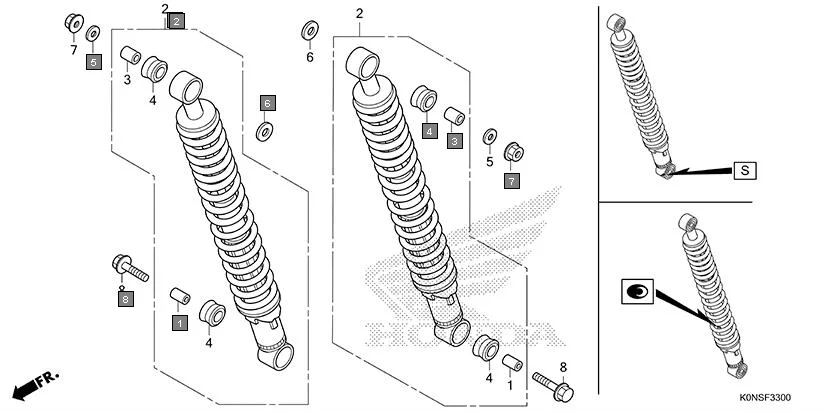

F-33 - REAR CUSHION
HONDA SP125 CBF125MEFT · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51488-KTN-701 | COLLAR, RUBBER BUSH (UNDER) | 2 | |
| 1 | 52486-056-000 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 2 | 52400-K0N-CA1 | CUSHION ASSY., RR.(SHOWA) | 2 | |
| 2 | 52400-K0N-DZ1 | CUSHION ASSY., RR.(ENDURANCE) | 2 | |
| 3 | 52486-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 3 | 52485-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 4 | 52495-K23-902 | BUSH, RUBBER(ENDURANCE) | 4 | |
| 4 | 52489-399-601 | BUSH, RUBBER (UPPER) | 4 | |
| 5 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 2 | |
| 6 | 90553-K0N-D00 | WASHER, PLAIN, 12MM | 2 | |
| 8 | 95801-10035-08 | BOLT, FLANGE, 10X35 | 2 | |
