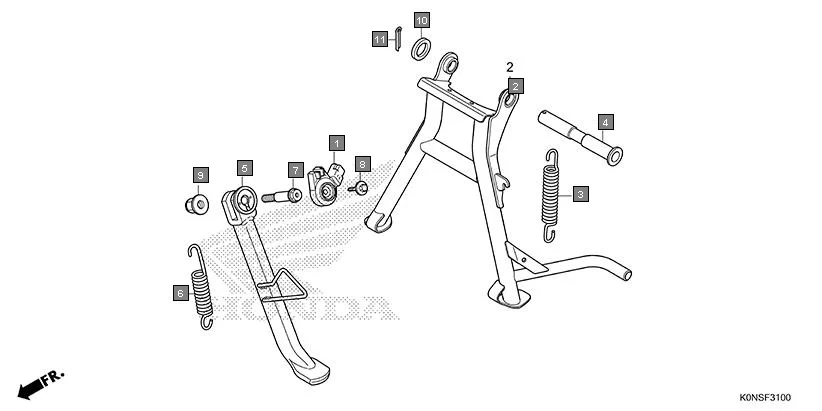

F-31 - STAND
HONDA SP125 CBF125MEFT · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-K0J-N01 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50500-K0N-DU0 | STAND COMP., MAIN | 1 | |
| 3 | 50520-K0N-D00 | SPRING, MAIN STAND | 1 | |
| 4 | 50526-K0N-D00 | SHAFT, MAIN STAND PIVOT | 1 | |
| 5 | 50530-K0N-D00 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50541-K0N-D00 | SPRING, SIDE STAND | 1 | |
| 7 | 90108-KZL-860 | BOLT, SIDE STAND PIVOT | 1 | |
| 8 | 90132-KYJ-960 | BOLT, SPECIAL, 6X16 | 1 | |
| 10 | 90521-028-000 | WASHER, 17X22 | 1 | |
