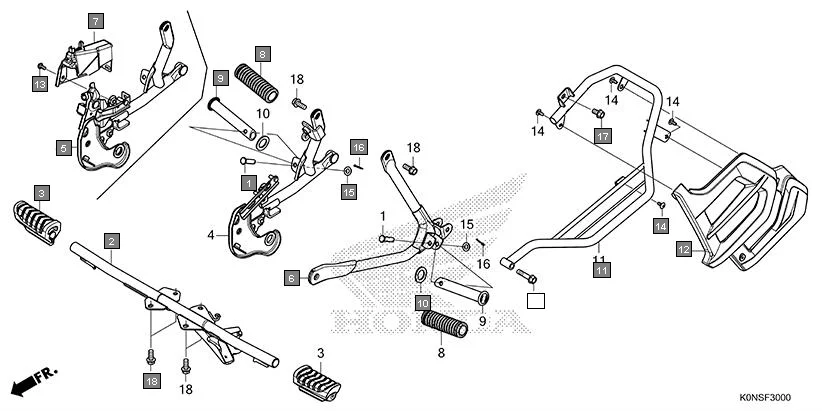

F-30 - STEP/SARI GUARD
HONDA SP125 CBF125MEFT · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50603-K0N-D00 | PIN, PILLION STEP BAR JOINT | 2 | |
| 2 | 50610-K0N-D00 | BAR COMP., STEP | 1 | |
| 3 | 50661-K0N-DJ0 | RUBBER, MAIN STEP | 2 | |
| 5 | 50701-K0V-AG1 | BRACKET COMP., R. PILLION STEP | 1 | |
| 6 | 50702-K0N-DJ0 | BRACKET COMP., L. PILLION STEP | 1 | |
| 7 | 50705-K0V-AG0 | COVER, LINK(CBS) | 1 | |
| 8 | 50710-KTE-910 | RUBBER, PILLION STEP | 2 | |
| 9 | 50715-K0N-D00 | BAR, PILLION STEP | 2 | |
| 10 | 50715-KFK-630 | PLATE, PILLION STEP SIDE | 2 | |
| 11 | 51103-K0N-DU0 | GUARD A, SARI | 1 | |
| 12 | 51104-K0N-DJ0 | GUARD B, SARI | 1 | |
| 14 | 93903-25280 | SCREW, TAPPING 5X12 | 4 | |
| 15 | 94102-08800 | WASHER, PLAIN, 8MM | 2 | |
| 16 | 94201-20151 | PIN, SPLIT, 2.0 | 2 | |
| 17 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 1 | |
| 18 | 95701-08016-08 | BOLT, FLANGE, 8X16 | 6 | |
