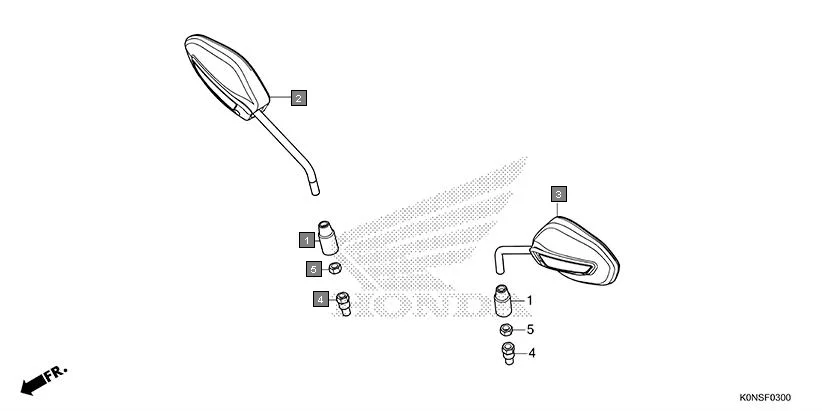

F-3 - MIRROR
HONDA SP125 CBF125MEFT · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88114-K0N-D80 | CAP, LOCK NUT | 2 | |
| 2 | 88210-K0N-D81ZC | MIRROR COMP., R. *NH1* BLACK | 1 | |
| 3 | 88220-K0N-D81ZC | MIRROR COMP., L. *NH1* BLACK | 1 | |
| 4 | 90103-K38-940 | BOLT, ADAPTER, 10MM | 2 | |
| 5 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
