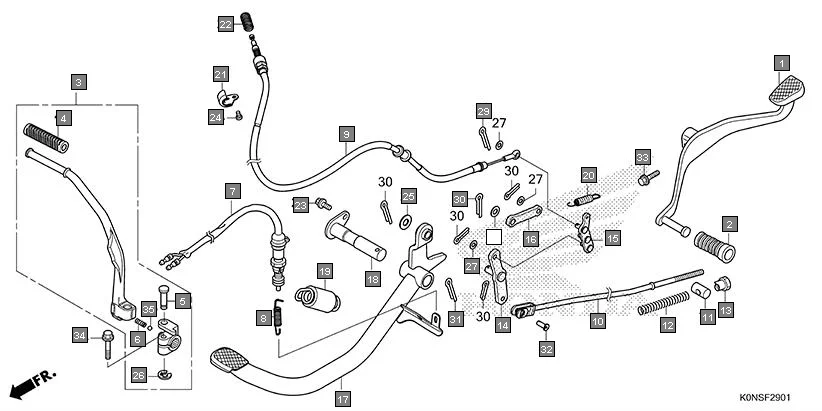

F-29-1 - PEDAL(CBF125MEF)
HONDA SP125 CBF125MEFT · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-K0N-D00 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 28300-K0N-D00 | ARM ASSY., KICK STARTER | 1 | |
| 4 | 28311-KWS-900 | RUBBER, KICK STARTER | 1 | |
| 5 | 28321-KTE-910 | PIN, KICK STARTER | 1 | |
| 6 | 28333-KAN-T40 | SPG KICK STARTER | 1 | |
| 7 | 35350-K0N-D01 | SWITCH ASSY., RR. STOP | 1 | |
| 8 | 35357-K0N-D00 | SPRING, STOP SWITCH | 1 | |
| 9 | 43450-K0N-DG1 | CABLE COMP., BRAKE(CBS) | 1 | |
| 10 | 43451-K0V-AG0 | ROD COMP., RR. BRAKE | 1 | |
| 11 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 12 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 13 | 43459-KSP-900 | NUT RR. BRK. ADJUST | 1 | |
| 14 | 43580-K0V-AG0 | EQUALIZER COMP. | 1 | |
| 15 | 43590-K0V-AG0 | PLATE COMP., EQUALIZER LINK | 1 | |
| 16 | 43593-K0V-AG0 | ROD, EQUALIZER LINK | 1 | |
| 17 | 46500-K0V-AG0 | PEDAL COMP., BRAKE | 1 | |
| 18 | 46513-K0N-D00 | SHAFT COMP., BRAKE PEDAL PIVOT | 1 | |
| 19 | 46514-KTE-DB0 | SPRING SET, BRAKE PEDAL | 1 | |
| 20 | 46614-K0V-AG0 | SPRING, DELAY | 1 | |
| 21 | 53196-K0V-AG0 | COVER, BRAKE CABLE HOLDER | 1 | |
| 22 | 53198-K0V-AG0 | SPRING, DELAY | 1 | |
| 23 | 90104-MEA-740 | BOLT, FLANGE,(DR)6X12 | 1 | |
| 24 | 90118-K0V-AG0 | BOLT, TORX, 5X10 | 1 | |
| 25 | 90552-K0N-D00 | WASHER, PLAIN, 10MM | 1 | |
| 26 | 90601-473-003 | E RING 8MM | 1 | |
| 27 | 94101-06800 | WASHER, PLAIN 6MM | 3 | |
| 28 | 94101-08800 | WASHER, PLAIN, 8MM | 1 | |
| 29 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
| 30 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 5 | |
| 31 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 32 | 95015-53000 | PIN, C JOINT | 1 | |
| 33 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 34 | 95701-08025-08 | BOLT, FLANGE, 8X25 | 1 | |
| 35 | 96211-08000 | BALL STEEL 8 MM | 1 | |
