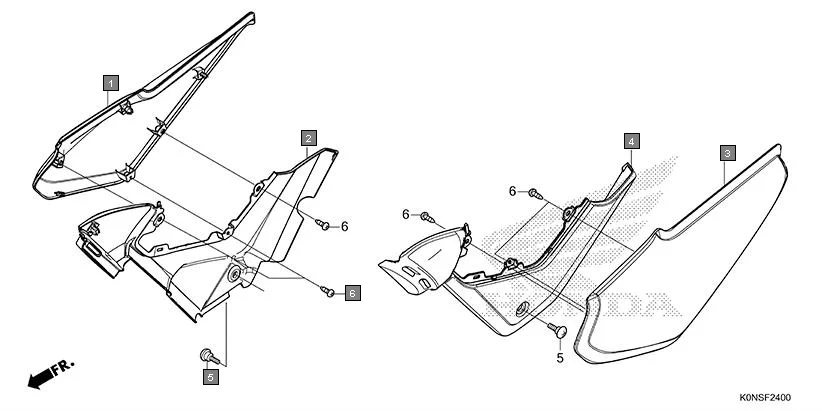

F-24 - SIDE COVER
HONDA SP125 CBF125MEFT · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-K0N-DP0ZB | COVER SET, R. SIDE(WL) *TYPE2* | 1 | |
| 1 | 83500-K0N-DU0ZA | COVER SET, R. SIDE(WL)*TYPE4* | 1 | |
| 1 | 83500-K0N-DU0ZC | COVER SET, R. SIDE(WL)*TYPE2* | 1 | |
| 1 | 83500-K0N-DU0ZD | COVER SET, R. SIDE(WL)*TYPE1* | 1 | |
| 1 | 83500-K0N-DU0ZE | COVER SET, R. SIDE(WL)*TYPE3 1* | 1 | |
| 2 | 83510-K0N-D00 | COVER SET, R. SIDE SUB(WL) | 1 | |
| 3 | 83600-K0N-DP0ZB | COVER SET, L. SIDE(WL) *TYPE2* | 1 | |
| 3 | 83600-K0N-DU0ZA | COVER SET, L. SIDE(WL) *TYPE4* | 1 | |
| 3 | 83600-K0N-DU0ZC | COVER SET, L. SIDE(WL) *TYPE2* | 1 | |
| 3 | 83600-K0N-DU0ZD | COVER SET, L. SIDE(WL) *TYPE1* | 1 | |
| 3 | 83600-K0N-DU0ZE | COVER SET, L. SIDE(WL) *TYPE3 1* | 1 | |
| 4 | 83602-K0N-D00 | SUB COVER, L. SIDE | 1 | |
