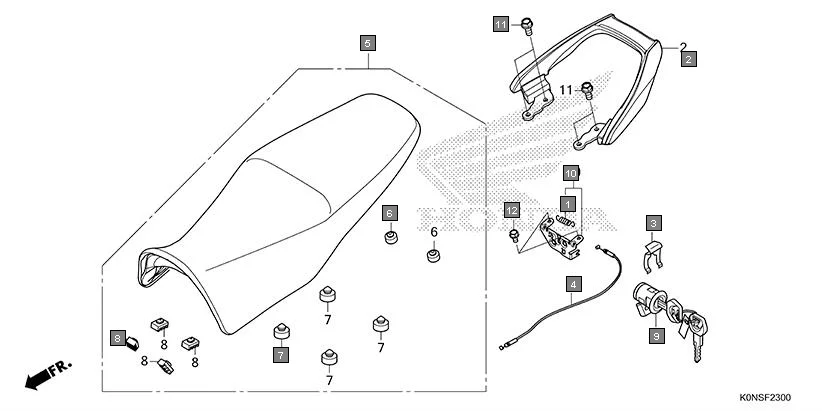

F-23 - SEAT
HONDA SP125 CBF125MEFT · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16574-K67-A00 | SPRING, LEVER | 1 | |
| 2 | 50400-K0N-D80ZJ | GRIP, RR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 4 | 77156-K0V-B01 | CABLE, SEAT LOCK | 1 | |
| 5 | 77200-K0N-661 | SEAT ASSY., DOUBLE | 1 | |
| 5 | 77200-K0N-D81 | SEAT ASSY., DOUBLE | 1 | |
| 6 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 7 | 77206-KTE-910 | RUBBER, SEAT SETTING | 4 | |
| 8 | 77207-KYA-600 | RUBBER B, SEAT SETTING | 4 | |
| 9 | 77225-KTE-D02 | LOCK ASSY., SEAT(MINDA) | 1 | |
| 10 | 77235-KTE-911 | CATCH COMP., SEAT | 1 | |
| 11 | 95701-08020-08 | BOLT, FLANGE, 8X20 | 4 | |
