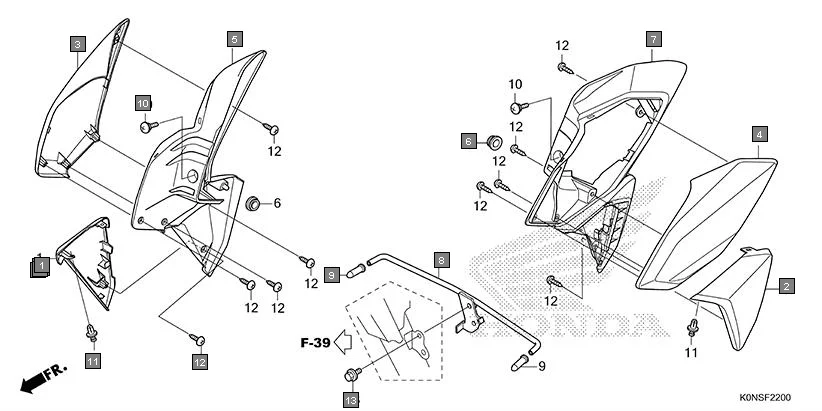

F-22 - SHROUD
HONDA SP125 CBF125MEFT · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50250-K0N-D00ZN | GARNISH, R. SHROUD*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 1 | 50250-K0N-D00ZG | GARNISH, R. SHROUD *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 1 | 50250-K0N-D00ZE | GARNISH, R. SHROUD *PB123PA*..PEARL SIREN BLUE-A | 1 | |
| 1 | 50250-K0N-D00ZC | GARNISH, R. SHROUD *R355M*.IMPERIAL RED METALLIC | 1 | |
| 1 | 50250-K0N-D00ZH | GARNISH, R. SHROUD *NH303M* MAT AX | 1 | |
| 2 | 50255-K0N-D00ZG | GARNISH, L. SHROUD *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 2 | 50255-K0N-D00ZF | GARNISH, L. SHROUD *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 2 | 50255-K0N-D00ZE | GARNISH, L. SHROUD*PB123PA*..PEARL SIREN BLUE-A | 1 | |
| 2 | 50255-K0N-D00ZD | GARNISH, L. SHROUD *R355M*.IMPERIAL RED METALLIC | 1 | |
| 2 | 50255-K0N-D00ZM | GARNISH, L. SHROUD*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 50265-K0N-DU0ZA | SHROUD SET, R.(WL)*TYPE4* | 1 | |
| 3 | 50265-K0N-DU0ZC | SHROUD SET, R.(WL)*TYPE2* | 1 | |
| 3 | 50265-K0N-DU0ZD | SHROUD SET, R.(WL)*TYPE1* | 1 | |
| 3 | 50265-K0N-DU0ZE | SHROUD SET, R.(WL)*TYPE3 1* | 1 | |
| 3 | 50265-K0N-Y00ZB | SHROUD SET, R.(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 50275-K0N-Y00ZB | SHROUD SET, L.(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 50275-K0N-DU0ZA | SHROUD SET, L.(WL) *TYPE4* | 1 | |
| 4 | 50275-K0N-DU0ZC | SHROUD SET, L.(WL) *TYPE2* | 1 | |
| 4 | 50275-K0N-DU0ZD | SHROUD SET, L.(WL) *TYPE1* | 1 | |
| 4 | 50275-K0N-DU0ZE | SHROUD SET, L.(WL) *TYPE3 1* | 1 | |
| 5 | 50280-K0N-D00 | SHROUD, R. INNER | 1 | |
| 6 | 50281-K0N-D00 | GROMMET, SHROUD | 2 | |
| 7 | 50285-K0N-D00 | SHROUD, L. INNER | 1 | |
| 8 | 50295-K0N-D00 | STAY COMP., SHROUD | 1 | |
| 9 | 61312-KCT-690 | BOOT, HEAD LIGHT STAY | 2 | |
| 10 | 90104-KT2-000 | SCREW, SPECIAL, 6X14 | 2 | |
| 11 | 90116-K0A-E11 | RIVET, PUSH, 6MM | 2 | |
| 12 | 93903-24380 | SCREW TAPPING, 4 X 12 | 10 | |
