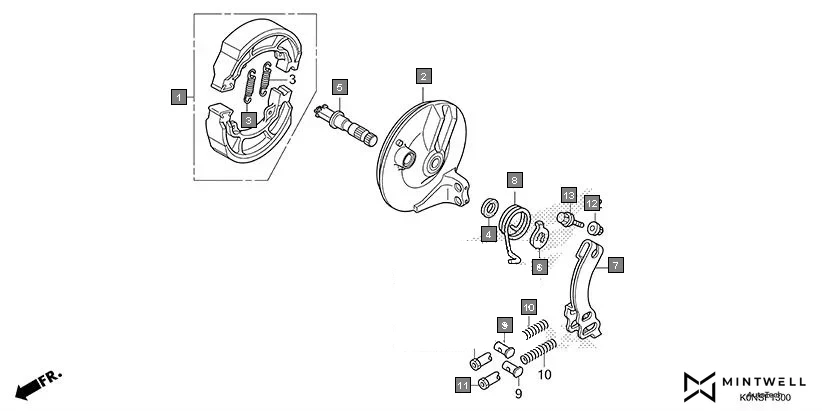

F-13 - FRONT BRAKE PANEL
HONDA SP125 CBF125MEFT · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KTN-700 | SHOE SET, BRAKE(JB) | 1 | |
| 2 | 45100-K0N-D90ZA | PANEL COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 5 | 45141-KWP-D00 | CAM, FR. BRAKE (RR.) | 1 | |
| 6 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 7 | 45410-KVT-940 | ARM, FR. BRAKE | 1 | |
| 8 | 45435-KPL-900 | SPRING, BRAKE ARM RETURN | 1 | |
| 9 | 45453-KWP-911 | JOINT, BRAKE ARM | 1 | |
| 10 | 45456-KWP-910 | SPRING BRK CABLE END | 1 | |
| 11 | 45459-KWP-911 | NUT BRAKE ADJUSTING | 1 | |
