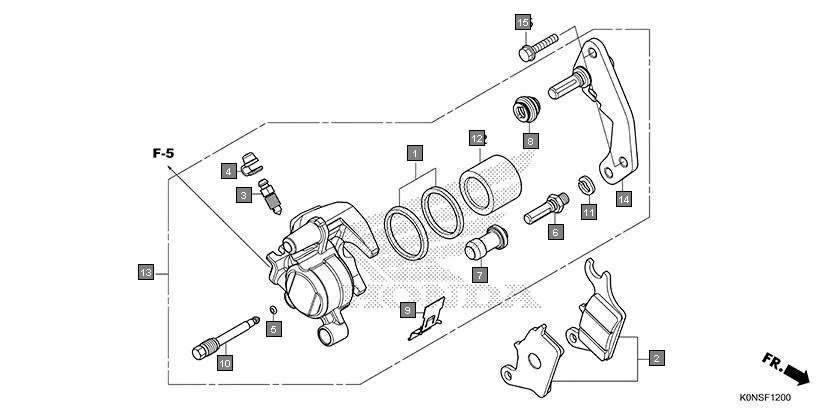

F-12 - FRONT BRAKE CALIPER
HONDA SP125 CBF125MEFT · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-961-405 | SEAL SET, PISTON | 1 | |
| 2 | 06455-K0V-AG1 | PAD SET, FR. BRAKE | 1 | |
| 3 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 1 | |
| 4 | 43353-461-771 | CAP, BLEEDER | 1 | |
| 5 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 6 | 45131-GZ0-006 | BOLT, PIN | 1 | |
| 7 | 45132-166-016 | BOOT, PIN BUSH(NISSIN) | 1 | |
| 8 | 45133-MA3-006 | BOOT B | 1 | |
| 9 | 45208-KWB-601 | SPRING, PAD | 1 | |
| 10 | 45215-KPH-951 | PIN, HANGER | 1 | |
| 11 | 45216-166-006 | WASHER, WAVE | 1 | |
| 12 | 45218-KWB-601 | PISTON | 1 | |
| 13 | 45250-K0V-AG1 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 | |
| 14 | 45290-K0V-AG1 | BRACKET SUB ASSY., FR. CALIPER | 1 | |
| 15 | 90155-GGZ-J00 | BOLT, FLANGE, 8X25 | 2 | |
