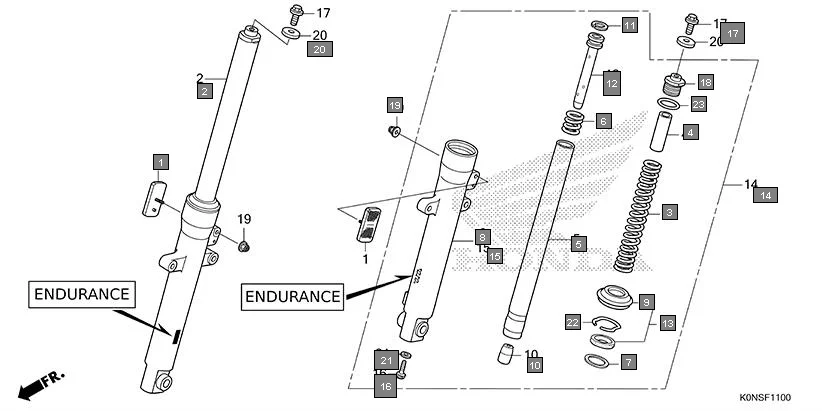

F-11 - FRONT FORK(ENDURANCE)
HONDA SP125 CBF125MEFT · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 51400-K0N-DZ1 | FORK ASSY., R. FR.(ENDURANCE) | 1 | |
| 3 | 51401-K23-902 | SPRING, FR. FORK(ENDURANCE) | 2 | |
| 4 | 51403-K63-D11 | COLLAR, SPRING | 2 | |
| 5 | 51410-K0N-DU1 | PIPE COMP., FR. FORK | 2 | |
| 6 | 51412-K23-902 | SPRING, REBOUND | 2 | |
| 7 | 51413-K63-D11 | RING, BACK UP | 2 | |
| 8 | 51420-K0N-DZ1 | CASE, R. FR. BOTTOM(ENDURANCE) | 1 | |
| 9 | 51425-K23-902 | DUST SEAL(ENDURANCE) | 2 | |
| 9 | 51425-K0L-D02 | SEAL, DUST(ENDURANCE) (LEFT HAND SIDE) | 2 | |
| 10 | 51432-K0N-DU1 | PIECE, OIL LOCK | 2 | |
| 11 | 51437-K23-902 | RING, PISTON | 2 | |
| 12 | 51440-K0N-DU1 | PIPE, SEAT | 2 | |
| 13 | 51490-K23-902 | SEAL SET, FR. FORK | 2 | |
| 13 | 51490-K0L-D02 | SEAL SET, FR. FORK | 2 | |
| 14 | 51500-K0N-DZ1 | FORK ASSY., L. FR.(ENDURANCE) | 1 | |
| 15 | 51520-K0N-DZ1 | CASE, L. FR. BOTTOM(ENDURANCE) | 1 | |
| 16 | 90116-K0N-DU1 | BOLT, SOCKET, 8X27 | 2 | |
| 17 | 90123-K0N-DU0 | BOLT, FR. FORK | 2 | |
| 18 | 90123-K23-902 | BOLT A, FR. FORK | 2 | |
| 19 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 20 | 90521-K0N-DU0 | WASHER, 10.3MM | 2 | |
| 21 | 90544-K0N-DU1 | WASHER, SPECIAL, 8MM | 2 | |
| 22 | 90651-K23-902 | RING, OIL SEAL STOP | 2 | |
| 23 | 91351-K23-902 | O-RING | 2 | |
