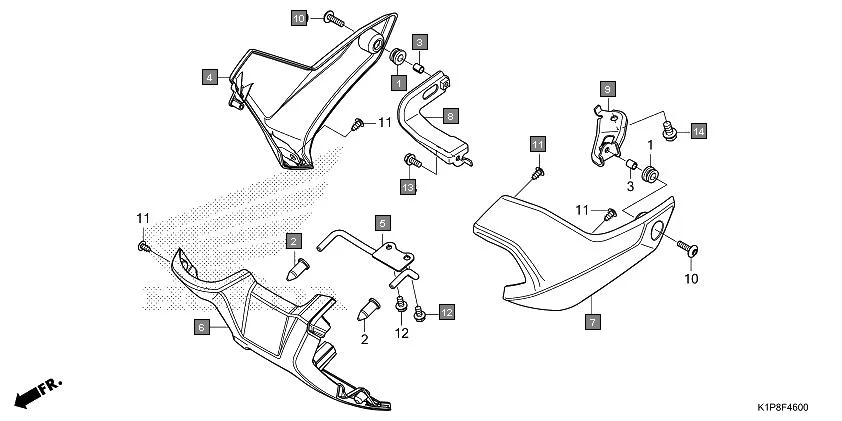

F-46 - UNDER COWL
HONDA CB200X CB190XS · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 2 | |
| 3 | 61314-KTC-900 | COLLAR, COWL MTG | 2 | |
| 4 | 64332-K1P-D00ZA | COWL, R. UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 64335-K1P-D00 | STAY, FR. UNDER COWL | 1 | |
| 6 | 64337-K1P-D00 | COWL, CENTER UNDER | 1 | |
| 7 | 64342-K1P-D00ZA | COWL, L. UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 64351-K1L-D00 | STAY, R. UNDER COWL | 1 | |
| 9 | 64352-K1L-D00 | STAY, L. UNDER COWL | 1 | |
| 12 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 14 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 1 | |
