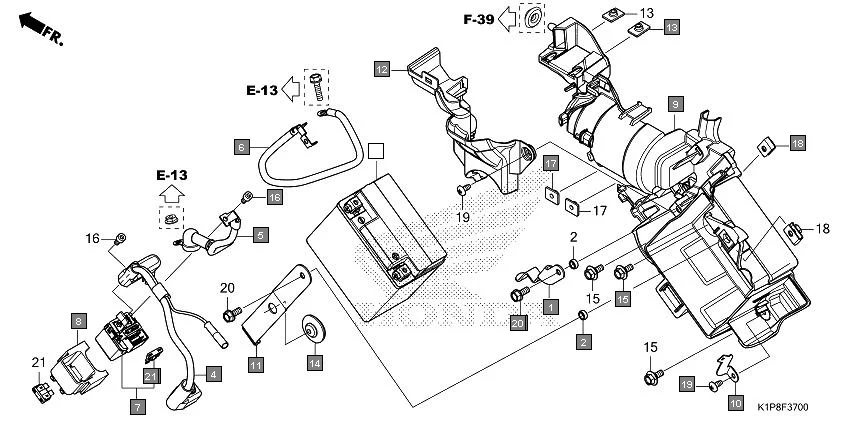

F-37 - BATTERY
HONDA CB200X CB190XS · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16716-K1K-D00 | STAY, FUEL PUMP | 1 | |
| 2 | 17223-KVX-600 | COLLAR, AIR CLEANER | 2 | |
| 3 | 31500-K0L-D11 | BATTERY(YTZ6V)(GS YUASA) | 1 | |
| 4 | 32401-K1L-D00 | CABLE, STARTER MAGNETIC BATTERY | 1 | |
| 5 | 32410-K1L-D00 | CABLE, STARTER MOTOR | 1 | |
| 6 | 32601-K1L-D00 | CABLE, BATTERY EARTH | 1 | |
| 7 | 35850-K1L-D01 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 8 | 35856-K1L-D01 | RUBBER, SHOCK | 1 | |
| 9 | 50384-K1K-D00 | BOX, BATTERY | 1 | |
| 10 | 50385-K1K-D00 | STAY, FUSE BOX | 1 | |
| 11 | 50386-K0E-D50 | BAND, BATTERY | 1 | |
| 12 | 50387-K1K-D00 | COVER, BATTERY BOX | 1 | |
| 13 | 61304-MGS-D70 | NUT, SPECIAL, 5MM | 2 | |
| 14 | 83618-323-000 | RUBBER, BATTERY BOX | 1 | |
| 16 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 17 | 90311-K0N-D00 | NUT, 6MM | 2 | |
| 18 | 90653-K0L-D00 | NUT, CLIP, 6MM | 2 | |
| 19 | 93903-25220 | SCREW, TAPPING, 5X12 | 2 | |
| 21 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
